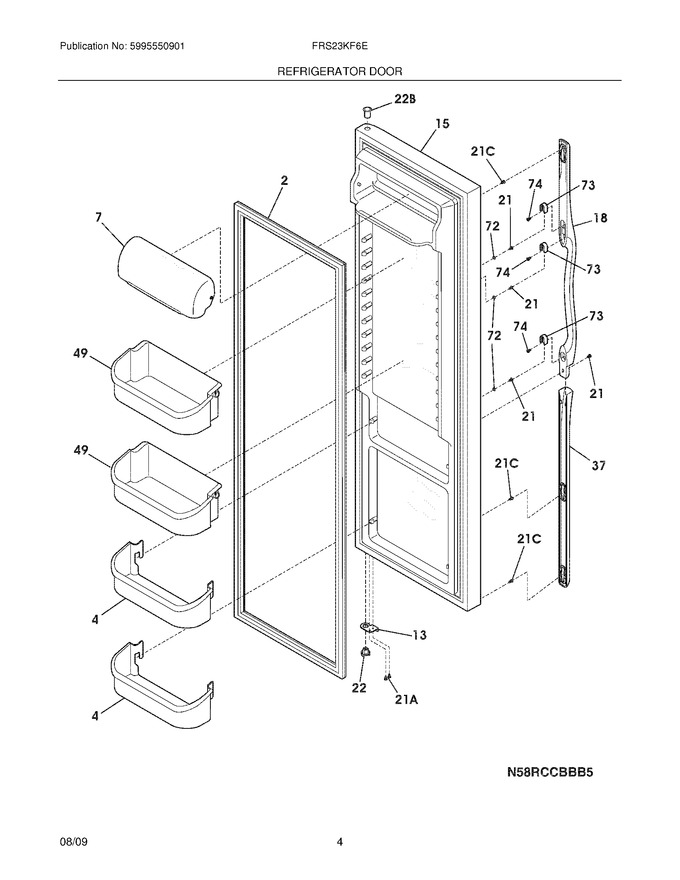

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786015		Gasket-refr Door,black ,magnetic   (Replaces: 241786007)			Immediately	$ 94.66
4	240363702		Bin-door,2-liter			Immediately	$ 76.40
7	240338313		Door,dairy ,clear   (Replaces: 240338303)			Immediately	$ 80.80
13	240581905		Door Stop,black ,ref				$ 60.25
15	241534554		Door-refr,silver Mist ,complete Assy				$ 568.05
18	241934302		Handle-door,black		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625				$ 15.60
22	242015302		Bearing-hinge(ref),black ,closer				$ 10.62
37	241927002		Trim-door Handle,black ,bottom				$ 41.96
49	240324502		Bin-door,gallon			Immediately	$ 102.61
72	240421701		Button-handle Mtg,dovetail				$ 14.81
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503204		Screw,cr Pan Hd ,10-16				$ 14.96
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
21C	240521304		Screw,no.8-18 X 3/4				$ 11.08
22B	240328404		Bearing-hinge,black ,upper				$ 22.87
