01 - Body
02 - Control Panel
03 - Door/drawer (3127wtx Model)
04 - Oven/base
05 - Top Assembly
SELECT A DIAGRAM
New Model Search:

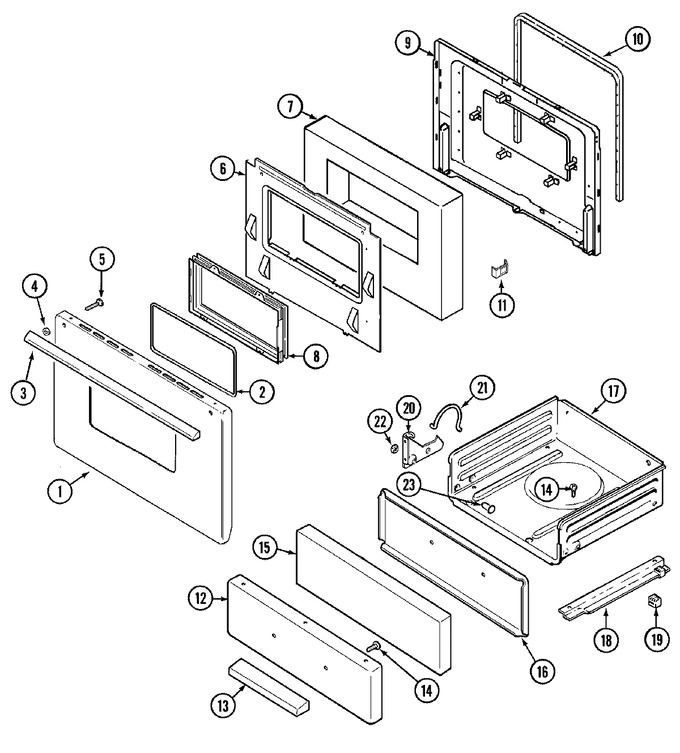

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2401F097-71 | Panel, Door (wht) | 01 |
|
- | ||||
| 2 | 7201P017-60 | Gasket, Window | 01 |
|
$ 52.69 | ||||
| 3 | 7701P030-60 | Handle, Door (chr) | 01 |
|
- | ||||
| 4 | 8010P084-60 | Spacer, Handle (blk) | 01 |
|
- | ||||
| 5 | WP3387230 | Screw, Clamp (Replaces: 7101P080-60) | 01 |
|
Immediately | $ 7.69 | |||
| 6 | 3601F219-45 | Baffle, Door | 01 |
|
- | ||||
| 7 | 4804F011-60 | Insulation, Door | 01 |
|
- | ||||
| 8 | 7907P015-60 | Window Asy. | 01 |
|
- | ||||
| 9 | 2402W203-19 | Lining, Door | 01 |
|
- | ||||
| 10 | WP7212P043-60 | Seal, Silicone (Replaces: 7212P034-60) | 01 |
|
Immediately | $ 56.83 | |||
| 11 | 7112P034-60 | Clip, Door | 01 |
|
- | ||||
| 12 | 2403F028-71 | Panel, Drawer (wht) | 01 |
|
- | ||||
| 13 | 74001820 | Handle (short-chr) | 16 |
|
- | ||||
| 13 | 7701P012-60 | Handle, Drawer (chr) | 01 |
|
- | ||||
| 14 | 74002481 | Screw, Handle (Replaces: 7101P283-60) | 01 |
|
$ 5.82 | ||||
| 15 | 4804F025-60 | Insulation | 01 |
|
- | ||||
| 16 | 2404F035-19 | Lining, Broiler Drawer | 01 |
|
- | ||||
| 17 | 3407F012-19 | Drawer, Broiler | 01 |
|
- | ||||
| 18 | 3404F022-51 | Track, Drawer (lt) | 01 |
|
- | ||||
| 18 | 3404F023-51 | Track, Drawer (rt) | 01 |
|
- | ||||
| 19 | 8016P011-60 | Glide, Drawer | 01 |
|
- | ||||
| 19 | 8016P012-60 | Glide, Drawer Rear | 01 |
|
- | ||||
| 20 | 3418F080-51 | Hinge, Drawer (rt) | 01 |
|
- | ||||
| 20 | 3418F079-51 | Hinge, Drawer (lt) | 01 |
|
- | ||||
| 21 | 7803P064-60 | Spring, Hinge (lt) | 01 |
|
- | ||||
| 21 | 7803P065-60 | Spring, Hinge (rt) | 01 |
|
- | ||||
| 22 | 7103P022-60 | Nut, Grip | 01 |
|
- | ||||
| 23 | 7113P012-60 | Pin, Broiler Hinge | 01 |
|
- |
