SELECT A DIAGRAM

01 - 25832 & 25833 Mixing Valve Assemblies


02 - Accessories


03 - Agitator Post & Spin Tub


04 - Agitator, Shaft & Fabric Softener Disp


05 - Bleach Dispenser


06 - Boot, Chassis & Drain Tub


07 - Cabinet Top & Loading Door


08 - Cbal Weight, Brkt, Mtg Plt & Trans


09 - Control Hood


10 - Control Panel & Controls


11 - Door Safety Switch


12 - Drain


13 - Main Bearing Assy & Spin Belt


14 - Mixing Valve Assy


15 - Motor, Fluid Drive & Pump Belt


16 - Panels


17 - Power Cord, Wire & Terminals


18 - Pressure Switch, Reservoir & Drain Valve


19 - Pump Assy


20 - Transmission Assy

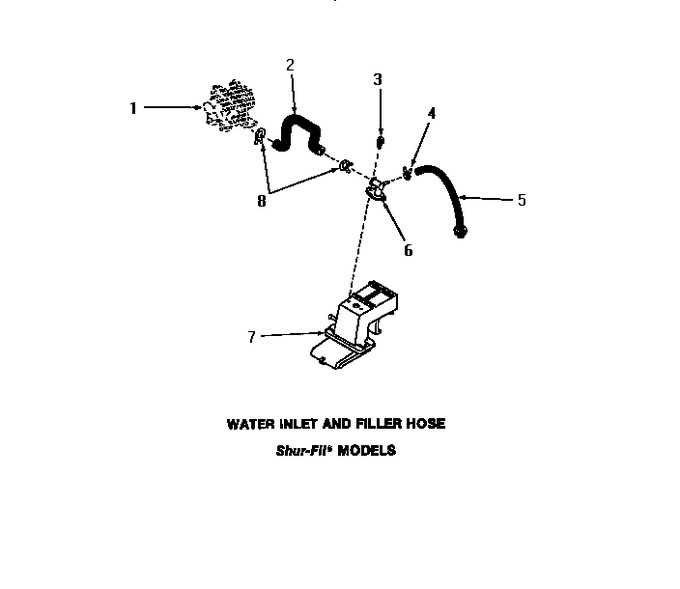

21 - Water Inlet & Filler Hose


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Mixing Valve Assembly		Appelez-nous	-
2	25821		Hose,filler		Appelez-nous	-
3	55469		Screw, 8b-16x5/8 Tap		Appelez-nous	-
4	WP596669		Hose Clamp   (Replaces: Y22294)			Immediately	$ 7.56
5	24439		Hose		Appelez-nous	-
6	25952		Tee,inlet		Appelez-nous	-
7	25956		Inlet,water		Appelez-nous	-
8	80479		Hose Clamp		Appelez-nous	-
	NOTE:		Use Capacitor Kit On Automatic Washers, With Reversing Motors, That Are Locatedin Areas Where Low Voltage Exists. This Kit Will Help Eliminate Motor Burn Outs		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
