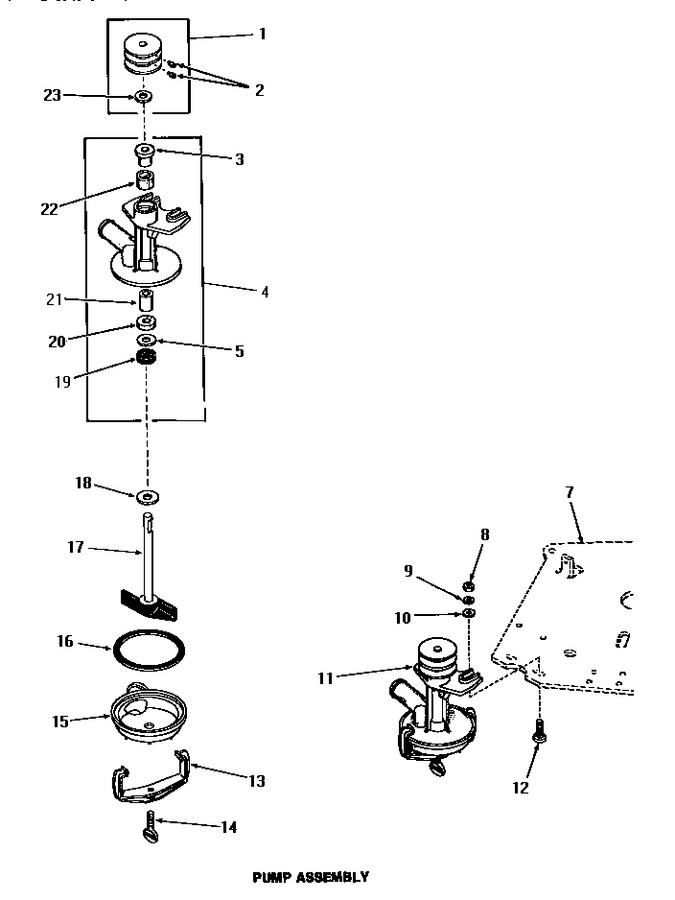

19 - Pump Assy


20 - Transmission Assy


21 - Water Inlet & Filler Hose


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23770		Assy,pulley		Appelez-nous	-
2	02771		Screw,1/4-20x3/8 Hex S		Appelez-nous	-
3	20072		Bearing		Appelez-nous	-
4	20763		Pump Body		Appelez-nous	-
5	20093		Washer,29/64idx63/64od		Appelez-nous	-
7	Y00000000		See Note Mounting Plate		Appelez-nous	-
8	WPW10139757		Nut   (Replaces: 20275)				$ 7.16
9	03189		Lockwasher,1/4 Std-c P		Appelez-nous	-
10	20176		Washer,.2656idx9/16odx		Appelez-nous	-
11	25178		Assy,pump		Appelez-nous	-
12	24390		Bolt		Appelez-nous	-
13	20066		Clamp,pump		Appelez-nous	-
14	20161		Screw,5/16-18 X 1-1/16		Appelez-nous	-
15	04316		Bottom,pump		Appelez-nous	-
16	20097		Gasket		Appelez-nous	-
17	22232		Assy,impeller   (Replaces: 04372)		Appelez-nous	-
18	20099		Washer,.440idx1.125odx		Appelez-nous	-
19	20095		Seal		Appelez-nous	-
20	20094		Packing Material		Appelez-nous	-
21	20071		Bearing		Appelez-nous	-
22	26479		Wick		Appelez-nous	-
23	DE81-06500A		Washer,pump Pulley   (Replaces: 26919)				$ 139.71
NI	131P3		Kit,pump Kt85				$ 49.99
