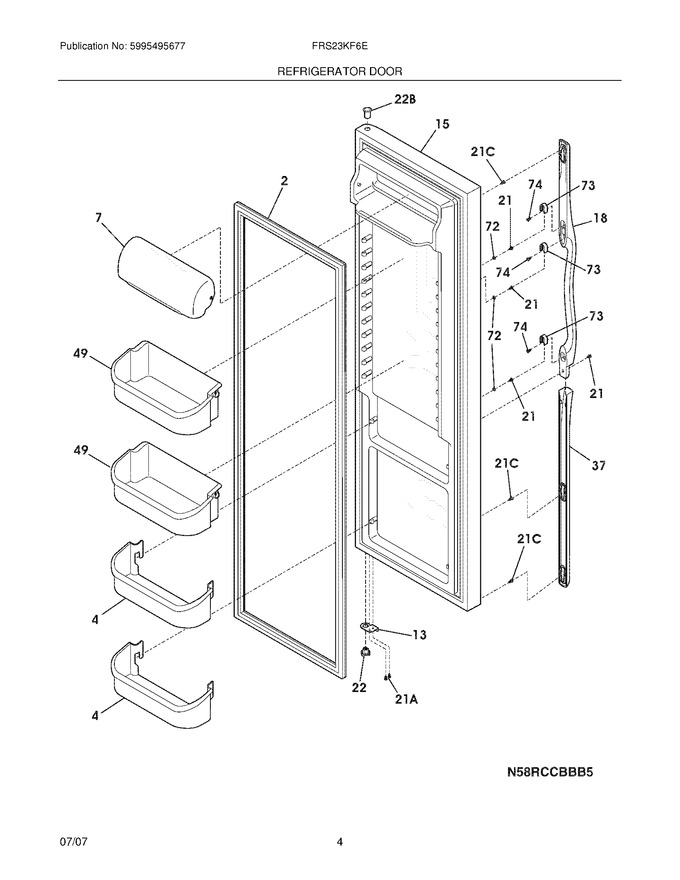

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786015		Gasket-refr Door,white ,magnetic   (Replaces: 241674803)			Immediately	$ 94.66
4	240363702		Bin-door,2-liter			Immediately	$ 76.40
7	240338313		Door,dairy ,clear   (Replaces: 240338303)			Immediately	$ 80.80
13	240581901		Door Stop,white ,refr				$ 43.95
15	240451913		Door-refr,white ,complete Assy				$ 388.50
18	241711701		Handle-door,white ,refr		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625				$ 15.60
22	240328201		Bearing-hinge(ref),closer			Immediately	$ 17.72
37	241711601		Trim-handle,30.13`` ,white ,lower		Appelez-nous	-
49	240324502		Bin-door,gallon			Immediately	$ 102.61
72	240421701		Button-handle Mtg,dovetail				$ 14.81
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503204		Screw,cr Pan Hd ,10-16				$ 14.96
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
21C	240521304		Screw,no.8-18 X 3/4				$ 11.08
22B	240328402		Bearing-hinge,natural ,upper				$ 19.85
