SELECT A DIAGRAM

01 - 25832 & 25833 Mixing Valve Assemblies


02 - Accessories


03 - Agitator Post & Spin Tub


04 - Agitator, Shaft & Fabric Softener Disp


05 - Bleach Dispenser


06 - Boot, Chassis & Drain Tub


07 - Cabinet Top & Loading Door


08 - Cbal Weight, Brkt, Mtg Plt & Trans


09 - Control Hood


10 - Control Panel & Controls


11 - Door Safety Switch


12 - Drain


13 - Main Bearing Assy & Spin Belt


14 - Mixing Valve Assy


15 - Motor, Fluid Drive & Pump Belt


16 - Panels


17 - Power Cord, Wire & Terminals

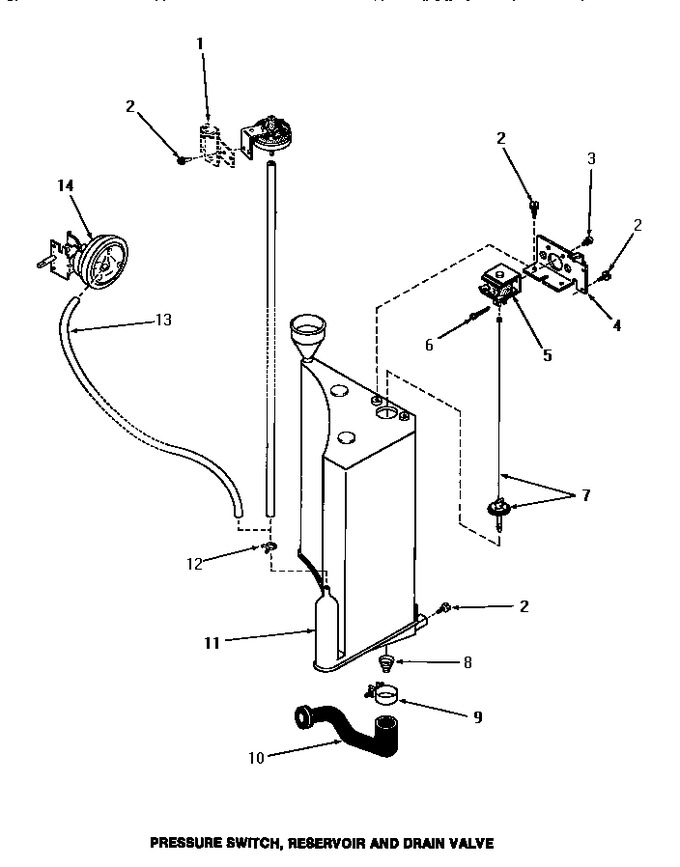

18 - Pressure Switch, Reservoir & Drain Valve


19 - Pump Assy


20 - Transmission Assy


21 - Water Inlet & Filler Hose


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Top Hold-down Bracket, Left-front		Appelez-nous	-
2	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
3	Y03950		Screw,10-32x5/16 Sems		Appelez-nous	-
4	Y26000		Bracket		Appelez-nous	-
5	25999		Solenoid,drain Valve		Appelez-nous	-
6	20248		Pin,cotter		Appelez-nous	-
7	26244		Assy,plunger-drain Val		Appelez-nous	-
8	25997		Spring,drain Valve		Appelez-nous	-
9	20824		Hose Clamp		Appelez-nous	-
10	25998		Hose,drain-pressure Ta		Appelez-nous	-
11	25993		Reservoir		Appelez-nous	-
12	WP596669		Hose Clamp   (Replaces: Y22294)			Immediately	$ 7.56
13	24444		No Longer Available		Appelez-nous	-
14	26051		Switch,pressure		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
