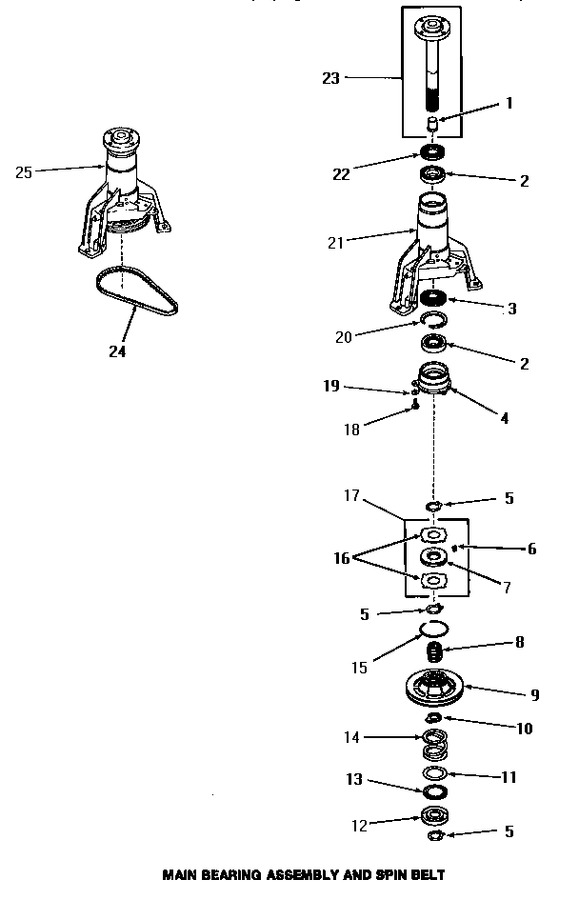

13 - Main Bearing Assy & Spin Belt


14 - Mixing Valve Assy


15 - Motor, Fluid Drive & Pump Belt


16 - Panels


17 - Power Cord, Wire & Terminals


18 - Pump Assy


19 - Transmission Assy


20 - Water Inlet & Filler Hose


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	25854		Bearing		Appelez-nous	-
2	28944RP		Bearing   (Replaces: 20012)			Immediately	$ 34.88
3	26247		Slinger,water		Appelez-nous	-
4	23639		Retainer		Appelez-nous	-
5	23724		Ring,retaining		Appelez-nous	-
6	24500		Clip,spring		Appelez-nous	-
7	23708		Assy,brake Disk		Appelez-nous	-
8	23634		Hub		Appelez-nous	-
9	24690		Assy,spin Pulley		Appelez-nous	-
10	23635		Stop		Appelez-nous	-
11	23722		Race,bearing		Appelez-nous	-
12	23640		Retainer		Appelez-nous	-
13	23721		Bearing,needle		Appelez-nous	-
14	23723		Spring		Appelez-nous	-
15	Y23720		Ring,snap		Appelez-nous	-
16	23637		Disc,brake		Appelez-nous	-
17	24599		Assy,brake Disk		Appelez-nous	-
18	02422		Screw,1/4-20 X 1/2 Hex		Appelez-nous	-
19	02431		Lockwasher,1/4 Ext Shk		Appelez-nous	-
20	20084		Ring,retaining		Appelez-nous	-
21	25979		Housing,main Bearing		Appelez-nous	-
22	Y21659		Seal		Appelez-nous	-
23	23731		Assy,spin Shaft		Appelez-nous	-
24	23759		Belt				$ 6.75
25	26018		Assy,bearing Housing-m				$ 6.90
NI	03200		A-d Drive Lubricant				$ 29.08
