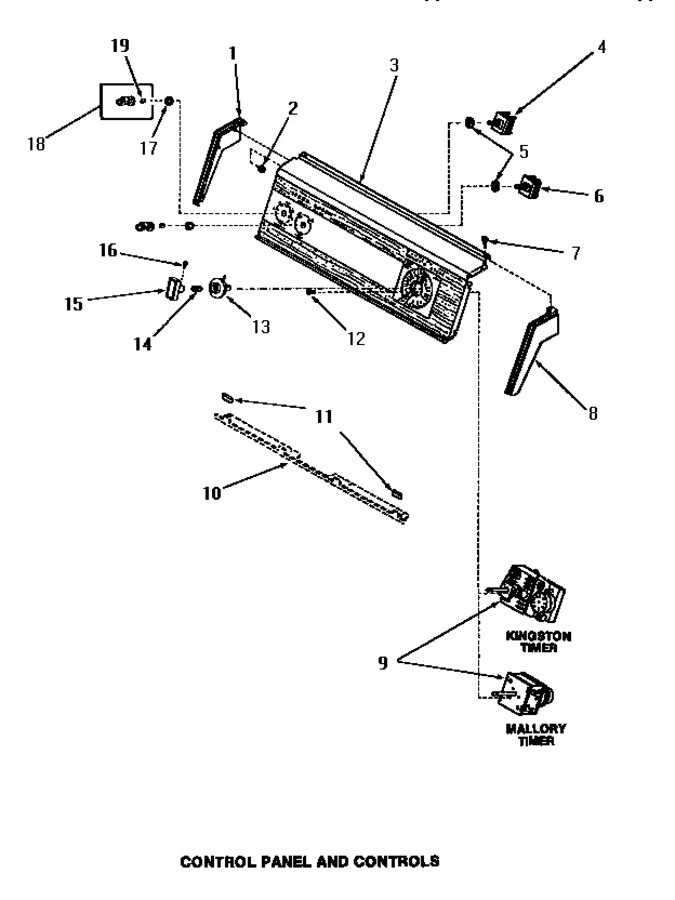

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	25124		Control Hood End, Left		Appelez-nous	-
2	25126		Palnut,3/16 Sf188		Appelez-nous	-
3	26165		Control Panel		Appelez-nous	-
4	24392		Switch Temp		Appelez-nous	-
5	91176		Lockwasher,3/8 Intshkp				$ 1.44
6	21302		Switch,motor-2sp		Appelez-nous	-
7	25232		Screw,8ab-18x7/8 Oval		Appelez-nous	-
8	25123		Control Hood End, Right		Appelez-nous	-
9	26410		Timer		Appelez-nous	-
10	Y00000000		See Note Panel Support Bracket		Appelez-nous	-
11	24859		Sleeve,support Angle		Appelez-nous	-
12	70212		Screw,8-32 X 5/32 Rd H		Appelez-nous	-
13	26326		Timer Knob Indicator		Appelez-nous	-
14	26319		Spring		Appelez-nous	-
15	26321		Timer Knob		Appelez-nous	-
16	26318		Screw,8-32 X 1/4 Set S		Appelez-nous	-
17	24205		Nut,knurled 3/8-24				$ 244.00
18	24291		Assy,knob		Appelez-nous	-
19	23392		Clip For 26816 Knob		Appelez-nous	-
