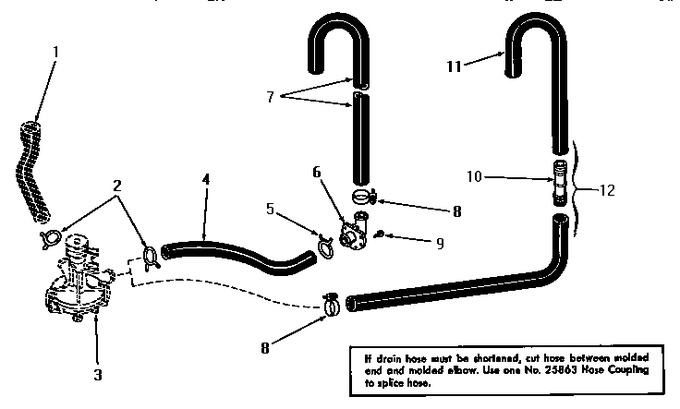

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Drain Tub Outlet Hose		Appelez-nous	-
2	20210		No Longer Available		Appelez-nous	-
3	Y00000000		See Note Pump Assembly		Appelez-nous	-
4	21254		Hose		Appelez-nous	-
5	Y03698		Clamp Xreplace		Appelez-nous	-
6	23553		Elbow,drain Hose-plast				$ 11.23
7	20240		Hose,m/f 29219		Appelez-nous	-
8	WP285655		Clamp, Hose   (Replaces: 20211)			Immediately	$ 7.55
9	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
10	WP16272		Coupler,hose   (Replaces: 25863)				$ 7.04
11	25182		Drain Hose		Appelez-nous	-
12	Y00000000		See Note Drain Hose And Hose Coupling -- (see Note)		Appelez-nous	-
