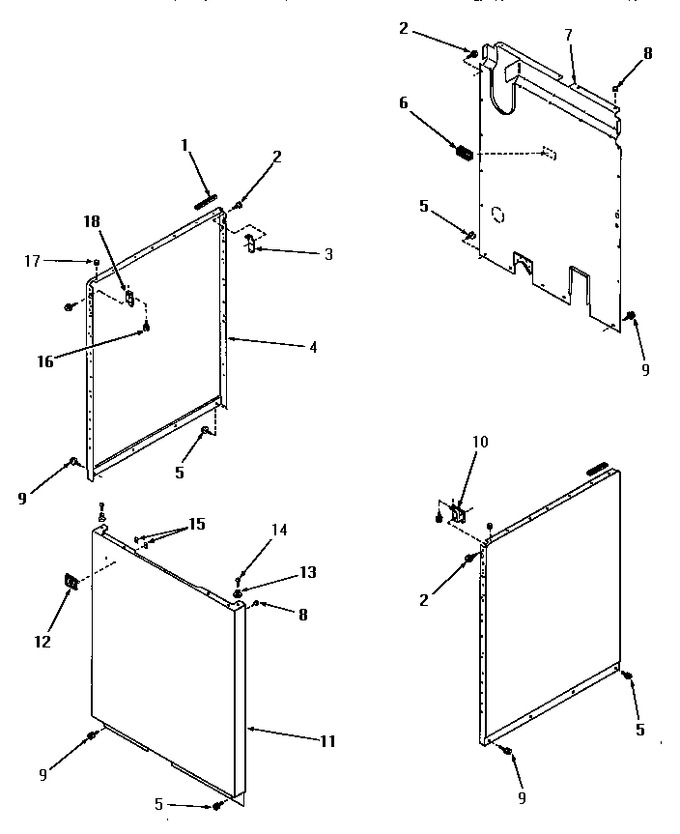

17 - Panels


18 - Power Cord, Wire And Terminals


19 - Pressure Switch, Reservoir & Drain Valve


20 - Pump Assy


21 - Transmission Assy


22 - Water Inlet And Filler Hose


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	80312		Bumper Pad				$ 20.03
2	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
3	52487		Lug,hold-down		Appelez-nous	-
4	24336A		Side Panel, Right Or Left, Avo		Appelez-nous	-
4	24336C		Side Panel, Right Or Left, Cop		Appelez-nous	-
4	24336H		Side Panel, Right Or Left, Har		Appelez-nous	-
4	24336W		Xreplace		Appelez-nous	-
5	WP27001200		Hex Head Screw   (Replaces: 26415)				$ 6.91
6	23257		Pad,bumper		Appelez-nous	-
7	24342GR		Rear Panel, Gray		Appelez-nous	-
8	20387		Bumper		Appelez-nous	-
9	26592		Hex Head Screw		Appelez-nous	-
10	26690		Bracket,hold Down-r.h.		Appelez-nous	-
11	24687A		Front Panel, Avocado		Appelez-nous	-
11	24687W		Front Panel, White		Appelez-nous	-
11	24687C		Front Panel, Coppertone		Appelez-nous	-
11	24687H		Front Panel, Harvest Gold		Appelez-nous	-
12	22086		Monogram				$ 13.42
13	23020		Mount,panel		Appelez-nous	-
14	Q6536		Round Head Screw		Appelez-nous	-
15	22161		Clip		Appelez-nous	-
16	23008		Screw,10-24 X 3/4 Sems				$ 6.95
17	21176		Bumper		Appelez-nous	-
18	26691		Bracket,hold Down-l.h.		Appelez-nous	-
