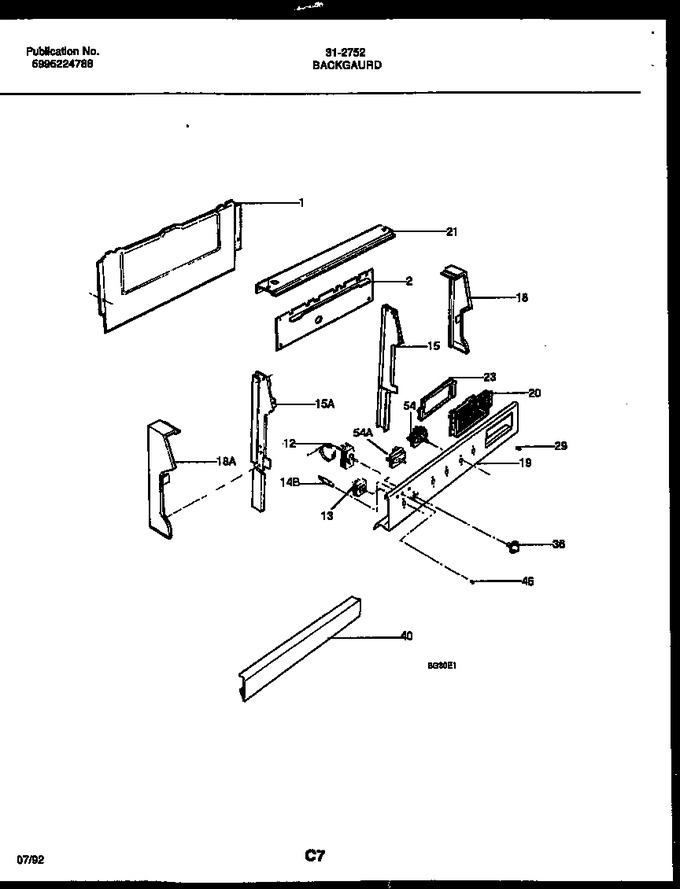

02 - Backguard
03 - Body Parts
04 - Body Parts
05 - Cooktop And Drawer Parts
06 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316008302 | Handle-door, Oven |
|
- | |||||
| 3 | 5303209518 | Trim-oven Door |
|
- | |||||
| 4 | 316019706 | Glass-oven Door, Black, Outer |
|
- | |||||
| 5 | 5303209513 | Glass-oven Door, Inner |
|
- | |||||
| 6 | 5303211084 | Shield-wool |
|
- | |||||
| 7 | 5303209514 | Insulation-oven Door |
|
- | |||||
| 9 | 5303209515 | Liner-oven Door |
|
- | |||||
| 10 | 316001001 | Screw-oven Handle, Wafer Head, 10-24 X 3.375 |
|
- | |||||
| 12 | 5303131601 | Seal-oven Door |
|
$ 374.63 | |||||
| 14 | 5303208656 | Reflector, Aluminum Foil |
|
- | |||||
| 15 | 5303209510 | Bracket-glass Mtg |
|
- | |||||
| 16 | 5303209512 | Glass-window Assy, Heat Barrier, (2) |
|
$ 150.41 | |||||
| 17 | 5303209517 | Spacer-glass |
|
- | |||||
| 18 | 5303211085 | Seal-rope, 0.25 Dia |
|
$ 44.00 | |||||
| 19 | 5303209511 | Collar-glass Mtg |
|
- | |||||
| *77870 | 5303269859 | Screw 8-18 X 1/2 Black |
|
- | |||||
| 14A | 5303208655 | Reflector, Aluminum Foil, (2) |
|
- |
