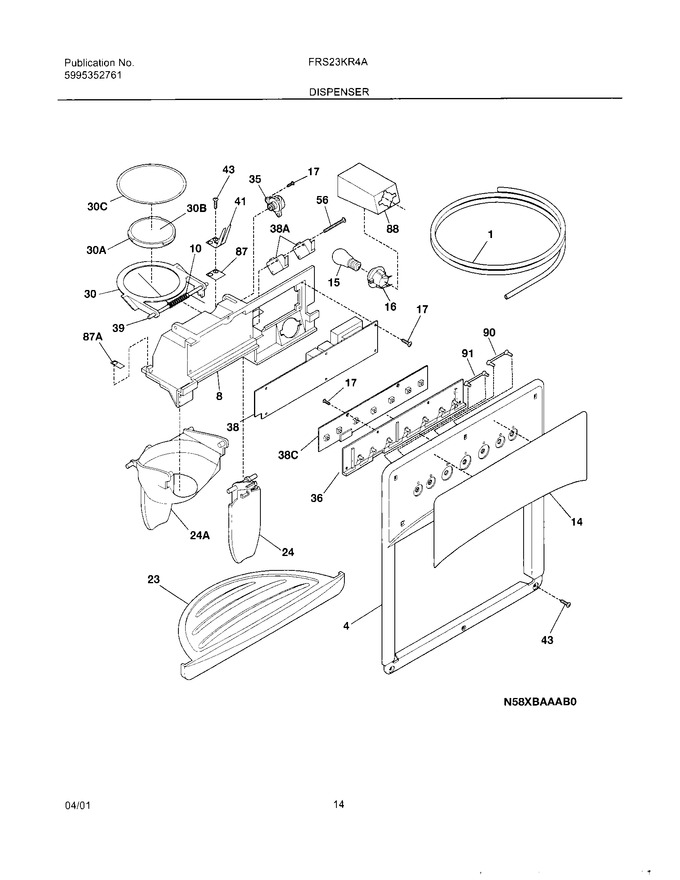

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976901		Tube-water Inlet,inlet Valve ,			Immediately	$ 81.50
4	240351811		Cover-module,black		Appelez-nous	-
8	5304422013		Module-dispenser		Appelez-nous	-
10	241688901		Spring-torsion   (Replaces: 5304421626)			Immediately	$ 21.27
14	240323920		Label-module Cover,black		Appelez-nous	-
15	5304421616		Light Bulb/lamp				$ 32.45
16	240548901		Socket-light/lamp   (Replaces: 215284900)				$ 63.70
17	241679801		Screw   (Replaces: 5304421619)				$ 14.18
23	241649003		Drip Tray,black   (Replaces: 240323603)				$ 61.66
24	241682003		Actuator-water,black   (Replaces: 5304422026)			Immediately	$ 55.63
24	241681903		Actuator-ice,black   (Replaces: 5304422025)			Immediately	$ 83.64
30	241688601		Insulation-door   (Replaces: 5304421625)				$ 63.17
30	241688401		Door Assy-ice Chute   (Replaces: 5304421628)				$ 49.62
30	241688501		Door Center   (Replaces: 5304421624)				$ 52.97
30	241688701		Door Seal   (Replaces: 5304421629)				$ 40.46
35	241689301		Damper-rotary   (Replaces: 5304421620)				$ 70.52
36	5304421824		Carrier		Appelez-nous	-
38	5304422345		Board-control		Appelez-nous	-
38	5304421827		Power Board		Appelez-nous	-
38	241689106		Switch-micro,single Pole ,double Throw   (Replaces: 5304421617)			Immediately	$ 8.60
39	241688801		Pin-hinge   (Replaces: 5304421627)				$ 43.24
41	241689001		Spring-actuator   (Replaces: 5304421829)				$ 21.97
43	215296300		Screw,plask H/l,6 X 3/8		Appelez-nous	-
56	241689201		Screw-micro Switch,pan Head   (Replaces: 5304421830)				$ 13.46
87	241688301		Bearing Plate   (Replaces: 5304421621)				$ 19.85
87	241688302		Bearing Plate   (Replaces: 5304421622)				$ 19.85
88	5304421615		Shield-light		Appelez-nous	-
90	5304421831		Light Pipe				$ 22.52
91	5304421850		Light Pipe,short		Appelez-nous	-
NI	218976904		Tube-water Inlet,valve To Filter				$ 110.57
NI	218976907		Tube-water Inlet,valve To Door				$ 67.73
