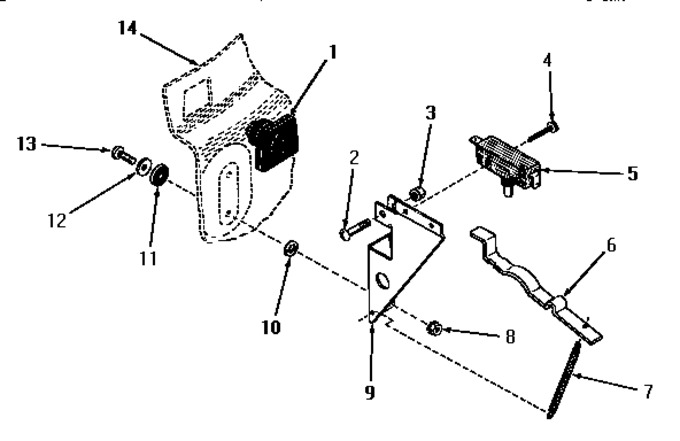

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23591		Diaphragm		Appelez-nous	-
2	Y02370		Screw,10-24x15/16 Hex		Appelez-nous	-
3	22001		Nut,10-24 Nylon Hex Br				$ 99.72
4	Sub. To D510158		Screw,6b-20 X 7/8 Hex   (Replaces: 51783)		Appelez-nous	-
5	23540		Switch		Appelez-nous	-
6	23592		Arm				$ 11.05
7	26766		Spring		Appelez-nous	-
8	M0282009		Locknut   (Replaces: 23951)				$ 12.06
9	22783		Bracket		Appelez-nous	-
10	21735		Lockwasher,no.10 Intshkp		Appelez-nous	-
11	02928		Washer		Appelez-nous	-
12	20492		Washer		Appelez-nous	-
13	21081		Screw,10-24 X 1/2 Rd H				$ 33.49
14	Y00000000		See Note Drain Tub		Appelez-nous	-
