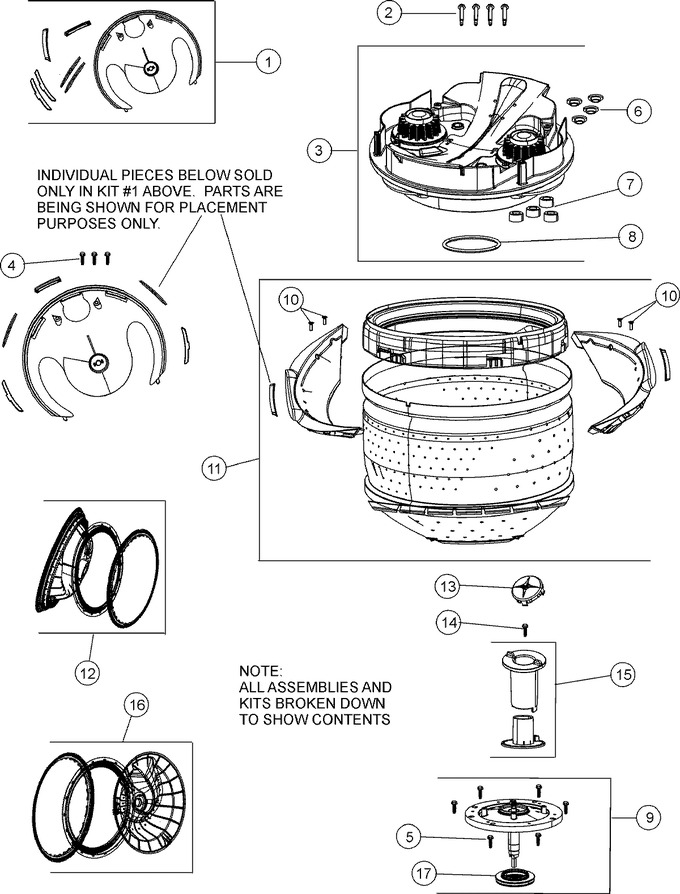

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12002196		Lifter Bearing Kit	10			$ 57.48
2	25001059		Screw No.8-18 1/2 C`sink Ss	10	Appelez-nous	-
3	25001089		Transmission Assy (as Pk)	10			$ 270.50
4	25001011		Screw, No.8 Ss	10	Appelez-nous	-
5	25001091		Bolt, 5/16	10	Appelez-nous	-
6	25001104		Rubber Isolator Pad	10	Appelez-nous	-
7	25001103		Rubber Isolator Sleeve	10	Appelez-nous	-
8	25001105		O-ring Seal	10			$ 5.84
9	25001057		Spinner Support Assy (as Pk)	10			$ 400.59
10	25001059		Screw No.8-18 1/2 C`sink Ss	10	Appelez-nous	-
11	Y25001058		Spinner Assembly (as Pk)	10	Appelez-nous	-
12	25001144		Tumbler Assy. Rh	10	Appelez-nous	-
13	25001010		Lifter Cap, Plastic	10	Appelez-nous	-
14	25001011		Screw, No.8 Ss	10	Appelez-nous	-
15	12002195		Lifter Flange Bearing Kit	10			$ 39.44
16	25001145		Tumbler Assy. Lh	10	Appelez-nous	-
17	25001090		Tub Seal	10			$ 25.14
