Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 316075201 Shield-backguard, Rear Wall Appelez-nous -
2 316015907 Shield-backguard, Inner Appelez-nous -
12 316021400 Thermostat-oven Appelez-nous -
13 316023200 Switch-selector Special Order $ 176.44

14 316022503 Light/lamp, Indicator, 250 V, (3) In-Stock Immediately $ 70.16

15 316023110 Support-backguard, Rh Appelez-nous -
18 316021800 End Cap, Black, Rh Special Order $ 81.32

19 316014703 Panel-control, Metal Appelez-nous -
20 316017403 Clock/timer, Analog 3 Stem Appelez-nous -
21 316014801 Trim-canopy/shield, Black, Top Appelez-nous -
23 316015005 Bracket, Clock Mtg Appelez-nous -
24 5303208662 Switch-oven Light, Rocker Appelez-nous -
29 316029000 Knob-clock Appelez-nous -
36 316015200 Knob-control, 6 Appelez-nous -
40 316009254 Panel-manifold Appelez-nous -
46 316040200 Lens-light/lamp, Indicator, Amber Appelez-nous -
54 5303935086 Switch-6`` Element   (Replaces: 316021500) In-Stock Immediately $ 51.95

60 5303288574 Screw, Truss Head, 8-10 X 3/8 Appelez-nous -
*10574 5303281584 Screw, Truss Head, 8-18 X 1/2 Appelez-nous -
15A 316023111 Support-backguard, Lh Appelez-nous -
18A 316021801 End Cap, Black, Lh Special Order $ 94.29

54A 316436001 Switch-8`` Element   (Replaces: 316021501) In-Stock Immediately $ 51.68

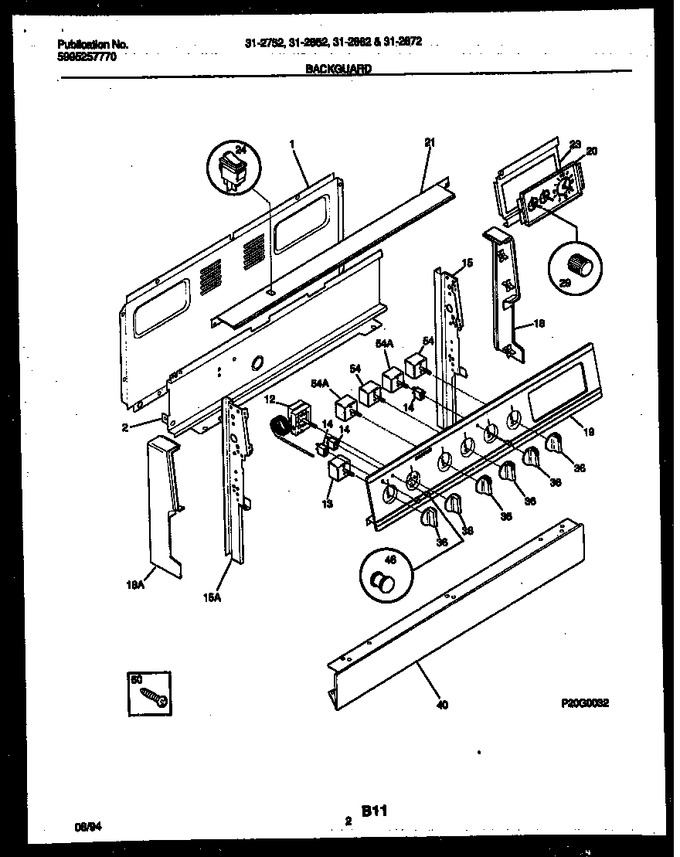

    View Diagram in Separate Window     Print Icon   Print Part List
