SELECT A DIAGRAM

01 - Drain Chamber/impeller Plate & Shredder


02 - Electrical Components


03 - Front View (fb10)


04 - Front View (fb20)


05 - Front View (fc10)


06 - Front View (fc20)


07 - Front View (fc5)

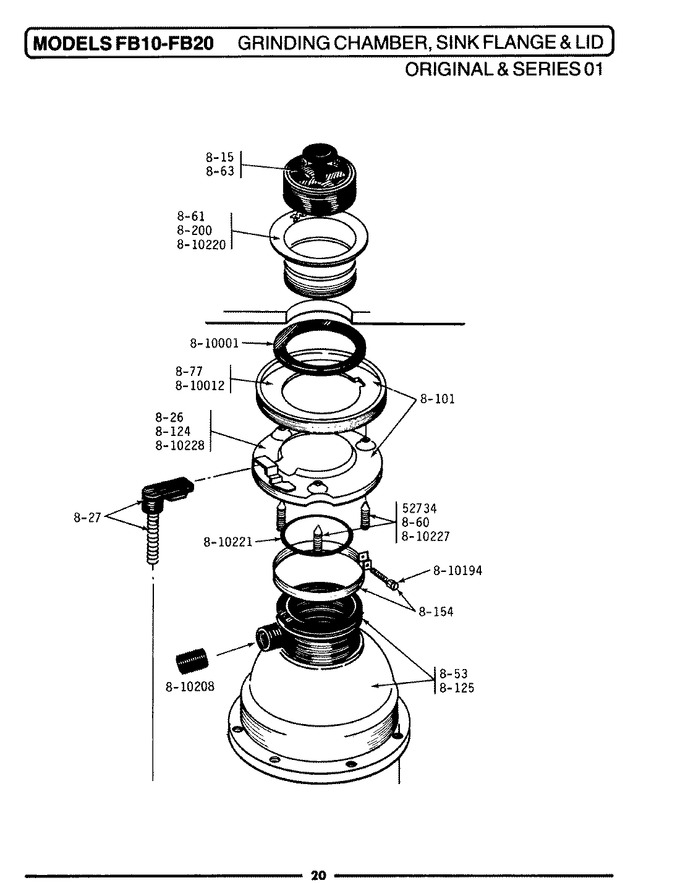

08 - Grinding Chamber, Sink Flange & Lid


09 - Grinding Chamber, Sink Flange & Lid (01)


10 - Installation Accessories


11 - Lids


12 - Outer Housing & Insulation (fb20/fc20)


13 - Sink Flange


14 - Sink Flange (series 01)


15 - Statr,rotor,relay,cptr,bell (fb10,fb20)


16 - Statr,rotor,relay,cptr,bell (fc5,10,20)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	800015		Auto-start Lid Complete-fb	00	Appelez-nous	-
3	800026		Mounting Plate-lower-w/clip	00	Appelez-nous	-
4	800027		Auto-start Sw & Conduit Ass	00	Appelez-nous	-
5	WS01A00265		Grinding Chamber Assembly   (Replaces: 800053)	00			$ 67.51
6	800060		Mounting Bolt Kit	00	Appelez-nous	-
7	800061		Sink Flange Kit	00	Appelez-nous	-
8	800063		Seal Kit For Auto-start Lid	00	Appelez-nous	-
9	800077		Mounting Plate With Bolts	00	Appelez-nous	-
10	800101		Upper & Lower Mtg Plates	00	Appelez-nous	-
11	800124		Lower Mounting Plate Assm	00	Appelez-nous	-
12	800125		Grinding Chamber Assembly	01	Appelez-nous	-
13	800154		Mounting Clamp Kit	00	Appelez-nous	-
14	800200		Sink Flange Kit	00	Appelez-nous	-
15	810001		Gasket For Sink Flange	00	Appelez-nous	-
16	810012		Mounting Plate-upper	00	Appelez-nous	-
17	810194		Screw	00	Appelez-nous	-
18	810208		Plug For Upper Housing	00	Appelez-nous	-
19	810220		Sink Flange	01	Appelez-nous	-
20	810221		Retaining Ring	01	Appelez-nous	-
22	810227		Mounting Bolt	01	Appelez-nous	-
23	810228		Mounting Plate-lower	01	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
