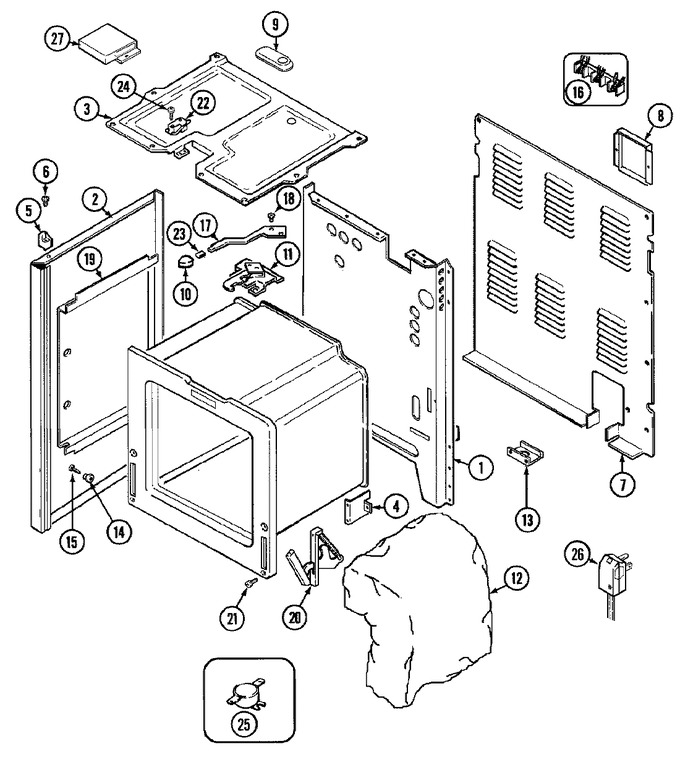

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 14 |
|
Immediately | $ 12.62 | |||
| 1 | 3604F218-51 | Shield, Wire | 11 |
|
- | ||||
| 1 | 74001772 | Back, Main | 11 |
|
- | ||||
| 1 | 74002334 | Shield, Wire | 14 |
|
- | ||||
| 1 | 7101P337-60 | Screw | 11 |
|
- | ||||
| 2 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 2 | 74001884 | Panel, Side (wht) | 11 |
|
- | ||||
| 3 | 74001753 | Box, Burner----na | 11 |
|
- | ||||
| 3 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 4 | 3807F400-51 | Support,oven Rear | 11 |
|
- | ||||
| 4 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 5 | 8010P087-60 | Spacer, Main Top (lt) | 11 |
|
- | ||||
| 5 | 8010P088-60 | Spacer, Main Top (rt) | 11 |
|
- | ||||
| 6 | 7101P313-60 | Screw (8abx3/8-zn) | 11 |
|
- | ||||
| 7 | 4005F455-51 | Cover, Wire | 11 |
|
- | ||||
| 7 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 8 | 4005F427-51 | Cover, Access | 11 |
|
- | ||||
| 8 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 9 | WPW10348409 | Screw (8abx13/16-zn) (Replaces: 74001449) | 11 |
|
Immediately | $ 6.98 | |||
| 9 | 4005F432-45 | Cover, Vent | 11 |
|
- | ||||
| 10 | 7701P153-60 | Handle, Door Latch (wht) | 11 |
|
- | ||||
| 11 | 7101P280-60 | Screw W/washer (blk) | 11 |
|
- | ||||
| 11 | 4804F028-60 | Insulation, Latch Assy. | 11 |
|
- | ||||
| 11 | 8002P025-60 | Latch Assy. | 11 |
|
- | ||||
| 11 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 11 | 74001823 | Insulator, Door Lock Switch | 11 |
|
- | ||||
| 12 | 4804F036-60 | Insulation, Wrap | 11 |
|
- | ||||
| 12 | 74001800 | Insulation, Back | 11 |
|
- | ||||
| 13 | 3605F174-51 | Plate, Conduit Tubing | 11 |
|
- | ||||
| 13 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 14 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 11 |
|
$ 7.07 | ||||
| 15 | WPW10348409 | Screw (8abx13/16-zn) (Replaces: 74001449) | 11 |
|
Immediately | $ 6.98 | |||
| 16 | 74002109 | Cap, Disconnect 2 Circuit | 11 |
|
- | ||||
| 17 | 74001725 | Lever, Door Latch | 11 |
|
- | ||||
| 18 | WP4159193 | Screw, Lever (Replaces: 7101P230-60) | 11 |
|
$ 4.29 | ||||
| 19 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 19 | 3804F103-51 | Retainer, Insulation (side) | 11 |
|
- | ||||
| 20 | 7106P056-60 | Hinge | 11 |
|
- | ||||
| 21 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 11 |
|
$ 4.29 | ||||
| 22 | 74001543 | Switch, Door Latch | 11 |
|
- | ||||
| 23 | 7112P112-60 | Clip, Latch Lever | 11 |
|
$ 4.83 | ||||
| 24 | 7101P130-60 | Screw, Latch Switch | 11 |
|
- | ||||
| 25 | 7403P160-60 | Switch, Hi-limit | 11 |
|
- | ||||
| 26 | 7402P050-60 | Cord, Power | 11 |
|
- | ||||
| 27 | 4005F451-80 | Cover, Latch Assy | 11 |
|
- | ||||
| 28 | 7111P020-60 | Clamp, Wire | 11 |
|
- | ||||
| 28 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 |
