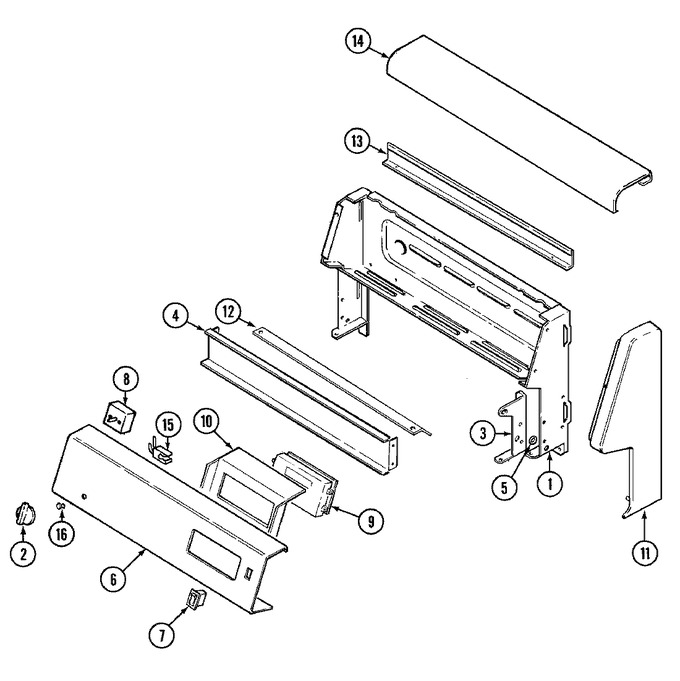

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4001F091-51 | Housing, Control Panel | 11 |
|
- | ||||
| 2 | WP74003611 | Knob, Switch (wht) (Replaces: 74002103) | 11 |
|
$ 17.45 | ||||
| 3 | 3418D097-60 | Hinge, Main Top (lt) | 11 |
|
- | ||||
| 3 | 3418D098-60 | Hinge, Main Top (rt) | 11 |
|
- | ||||
| 4 | 3802F088-51 | Brace, Control Panel | 11 |
|
- | ||||
| 5 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 11 |
|
$ 7.68 | ||||
| 6 | 74002107 | Panel, Control (wht) | 11 |
|
- | ||||
| 8 | WP7403P239-60 | Switch, Infinite (lrg Element) (Replaces: 7403P239-60) | 11 |
|
Immediately | $ 35.10 | |||
| 8 | WP7403P238-60 | Switch, Infinite (sml Element) (Replaces: 7403P238-60) | 11 |
|
Immediately | $ 57.78 | |||
| 9 | 74002097 | Clock (wht) | 11 |
|
- | ||||
| 10 | 74002099 | Bracket, Clock | 11 |
|
- | ||||
| 12 | 3604F201-80 | Shield, Sight | 11 |
|
- | ||||
| 12 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 11 |
|
Immediately | $ 12.62 | |||
| 13 | 74002039 | Shield, Sight | 11 |
|
- | ||||
| 14 | 74002043 | Cover, Backguard (wht) | 11 |
|
- | ||||
| 15 | W10852510 | Light, Indicator (Replaces: 7407P102-60) | 11 |
|
$ 106.11 | ||||
| 16 | W11690131 | Lens, Indicator Light (Replaces: 7730P012-60) | 11 |
|
$ 6.73 | ||||
| 17 | 74002480 | Harness, Control Panel | 11 |
|
- | ||||
| 17 | 5195D082-60 | Harness, Door Latch | 11 |
|
- | ||||
| 18 | 74002475 | Manual, Use & Care | 11 |
|
- | ||||
| 19 | 16000326 | Guide, Quick Ref - Jenn-air | 11 |
|
- |
