SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base

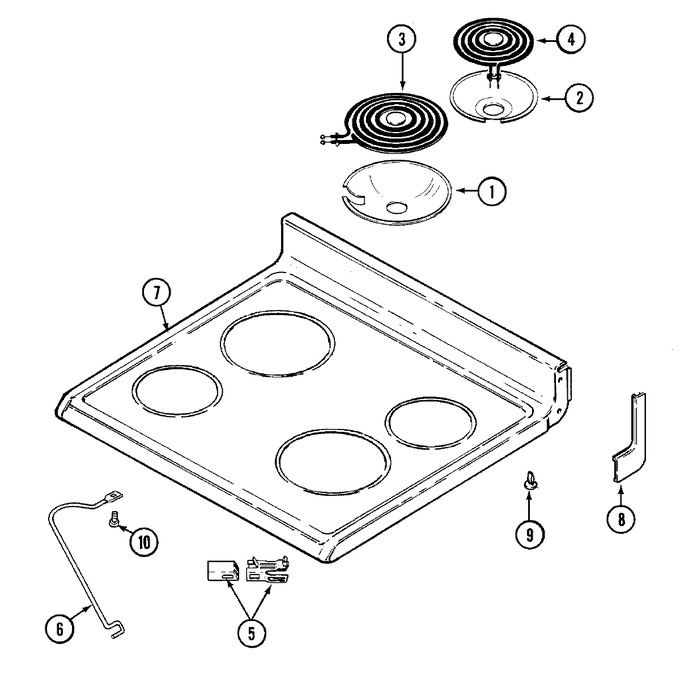

05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10291024 | Bowl, Drip (8`` Gry) (Replaces: 74001518) | 11 |
|
Immediately | $ 49.90 | |||
| 2 | W10291024 | Bowl, Drip (6`` Gry) (Replaces: 74001519) | 11 |
|
Immediately | $ 49.90 | |||
| 2 | W10291024 | Bowl, Drip (6`` W/hole-gry) (Replaces: 74001520) | 11 |
|
Immediately | $ 49.90 | |||
| 3 | WP12001560 | Element, Surface (8``) (Replaces: 74001775) | 11 |
|
$ 172.17 | ||||
| 4 | WPW10259868 | Element, Surface (6``) (Replaces: 74001777) | 11 |
|
Immediately | $ 112.28 | |||
| 5 | 12001676 | Kit, Receptacle (Replaces: 1430306K) | 11 |
|
Immediately | $ 28.45 | |||
| 5 | WP74004005 | Screw (Replaces: 7118P013-60) | 11 |
|
$ 6.95 | ||||
| 6 | 74001170 | Support, Top | 11 |
|
- | ||||
| 7 | 2002W103-81 | Top, Main (wht) | 11 |
|
- | ||||
| 8 | 7746P033-60 | End Cap, Top (lt-wht) | 11 |
|
- | ||||
| 8 | 7746P032-60 | End Cap, Top (rt-wht) | 11 |
|
- | ||||
| 8 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 11 |
|
$ 7.68 | ||||
| 9 | 8016P013-60 | Glide | 11 |
|
- | ||||
| 10 | 7101P280-60 | Screw W/washer (blk) | 11 |
|
- |
