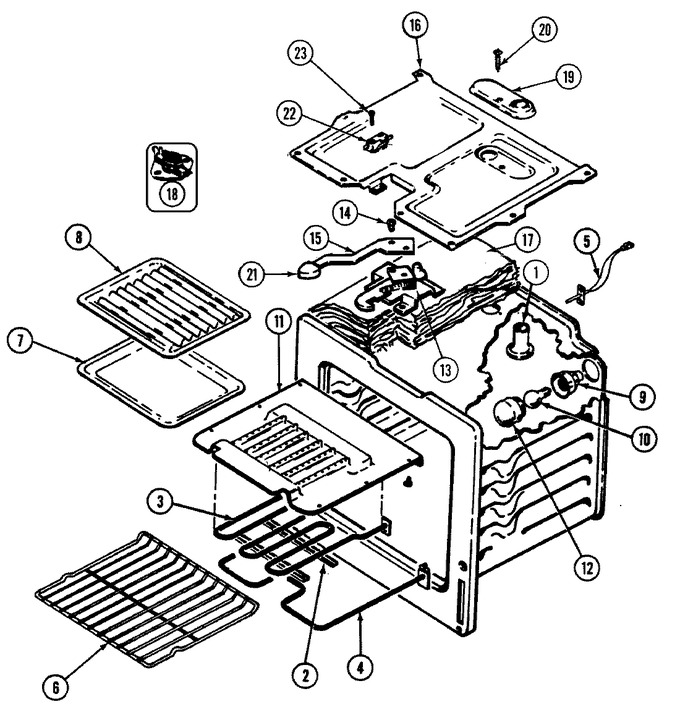

1	8026P019-60		Tube, Vent	11	Appelez-nous	-
2	3807F387-45		Support, Broil Element	11	Appelez-nous	-
2	W11772394		Screw   (Replaces: 7101P334-60)	11		Immediately	$ 10.94
3	WPY04000059		Element, Broil   (Replaces: Y04000059)	11			$ 159.00
4	WP74003019		Element, Bake   (Replaces: Y04000058)	11		Immediately	$ 51.10
5	12001656		Sensor, Oven   (Replaces: 7430P010-60)	11		Immediately	$ 39.55
6	WPW10282492		Rack   (Replaces: 7801P046-60)	11		Immediately	$ 65.15
7	Y3401F02019		Pan, Broil	11	Appelez-nous	-
8	Y3413F01619		Insert, Broil Pan	11	Appelez-nous	-
9	WP7407P182-60		Receptacle, Bulb   (Replaces: 7407P088-60)	11		Immediately	$ 66.10
10	40A15		Bulb, Oven   (Replaces: 7407P095-60)	11		Immediately	$ 1.98
11	3601F237-47		Baffle, Broil	11	Appelez-nous	-
11	W11233072		Screw   (Replaces: 7101P290-60)	11		Immediately	$ 12.62
12	WP9781049		Cover, Bulb   (Replaces: 7724P047-60)	11		Immediately	$ 71.93
13	W11233072		Screw   (Replaces: 7101P290-60)	11		Immediately	$ 12.62
13	4804F028-60		Insulation, Latch Assy.	11	Appelez-nous	-
13	8002P025-60		Latch Assy.	11	Appelez-nous	-
14	WP4159193		Screw, Lever   (Replaces: 7101P230-60)	11			$ 4.29
15	8009P024-60		Lever, Door Latch	11	Appelez-nous	-
15	7109P015-60		Washer	11	Appelez-nous	-
16	4011F240-19		Box, Burner	11	Appelez-nous	-
17	4804F036-60		Insulation, Wrap	11	Appelez-nous	-
17	4804F038-60		Insulation, Back	11	Appelez-nous	-
18	7403P160-60		Switch, Hi-limit	11	Appelez-nous	-
19	4005F432-45		Cover, Vent	11	Appelez-nous	-
20	7101P103-60		Screw	11	Appelez-nous	-
21	7112P003-60		Clip, Latch Handle	11	Appelez-nous	-
21	7701P132-60		Handle, Door Latch (blk)	11	Appelez-nous	-
22	7403P228-60		Switch, Door Latch	11	Appelez-nous	-
23	7101P130-60		Screw, Latch Switch	11	Appelez-nous	-
