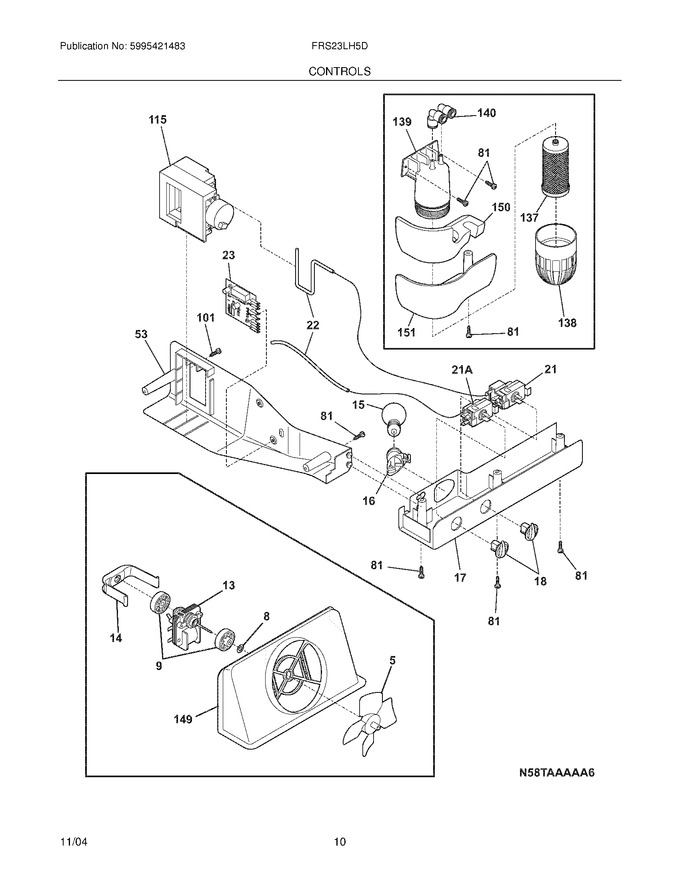

01 - Cover
03 - Freezer Door
05 - Refrigerator Door
07 - Cabinet
09 - Shelves
11 - Controls
13 - System
15 - Ice & Water Dispenser
17 - Ice Container
19 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | 215474201 | Washer,``slinger`` ,nylon ,evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 9 | 241563601 | Bushing-motor Mtg,(2) |
|
Immediately | $ 17.72 | ||||
| 13 | 5303918549 | Motor-evap Fan (Replaces: 240369702) |
|
Immediately | $ 88.16 | ||||
| 14 | 242135301 | Clip,evap Fan Motor (Replaces: 241517701) |
|
$ 7.79 | |||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 20.48 | ||||
| 17 | 240374006 | Box-control,front |
|
- | |||||
| 18 | 240360801 | Knob-temp Control |
|
$ 43.95 | |||||
| 22 | 218660702 | Tube-insulator |
|
- | |||||
| 53 | 240369501 | Box-control |
|
$ 78.37 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 101 | 218493101 | Screw,hex Washer Head `8-18ab X 1-3/4 (Replaces: 218493100) |
|
$ 13.46 | |||||
| 115 | 241600902 | Damper Assy,w/seal |
|
$ 274.83 | |||||
| 138 | 240434401 | Cup-water Filter |
|
Immediately | $ 81.14 | ||||
| 139 | 240434301 | Housing-water Filtr |
|
Immediately | $ 69.94 | ||||
| 140 | 240545201 | Elbow-water Tube |
|
$ 73.71 | |||||
| 149 | 241563401 | Shroud-fan Orfice |
|
- | |||||
| 150 | 240394102 | Insulation-water Filter Cover |
|
$ 51.40 | |||||
| 151 | 240376002 | Cover-water Filter |
|
$ 55.91 | |||||
| 21A | 5304496561 | Control-temperature,frzr Section (Replaces: 5304421067) |
|
Immediately | $ 141.37 | ||||
| F137 | 240389102 | Filter,water ,carbon Canister ,rear ,with O`rings |
|
- | |||||
| F137 | 218710300 | Wrench-filter |
|
$ 4.54 | |||||
| F138 | 218904301 | O-ring,wtr Filter Cup |
|
$ 13.46 | |||||
| F149 | 241528302 | Seal,shroud |
|
- | |||||
| F16 | 218906802 | Socket-light (Replaces: 241513901) |
|
$ 17.72 | |||||
| F21 | 241537104 | Control-temperature (Replaces: 241586501) |
|
Immediately | $ 198.68 | ||||
| F23 | 241508001 | Control-defrost,adaptive Timer ,pc Board |
|
- | |||||
| F5 | 5308000010 | Fan Blade,red ,evaporator Fan |
|
Immediately | $ 49.03 | ||||
| NI | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| NI | 241537802 | Harness-wiring,control Box |
|
$ 15.02 |
