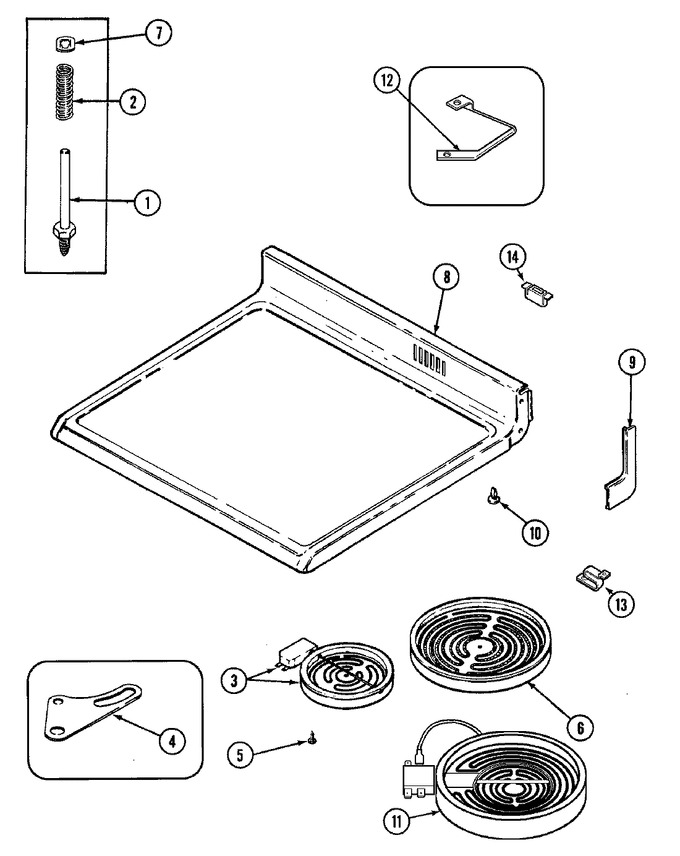

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10124350 | Not Required Part Or See Note | 13 |
|
- | ||||
| 1 | 7113P013-60 | Pin, Element | 11 |
|
- | ||||
| 2 | W10124350 | Not Required Part Or See Note | 13 |
|
- | ||||
| 2 | 7803P066-60 | Spring, Element Support | 11 |
|
- | ||||
| 3 | Y04000064 | Limiter (6`` Element) | 11 |
|
- | ||||
| 3 | W10823704 | Limiter (6``) (Replaces: 74002651) | 16 |
|
Immediately | $ 309.01 | |||
| 3 | W10823704 | Element W/limiter (6``) (Replaces: 74002653) | 16 |
|
Immediately | $ 309.01 | |||
| 3 | W10823704 | Element W/limiter (6``) (Replaces: 74001011) | 11 |
|
Immediately | $ 309.01 | |||
| 4 | W10124350 | Not Required Part Or See Note | 13 |
|
- | ||||
| 4 | 3819F013-45 | Clip, Element | 11 |
|
- | ||||
| 5 | WP74004005 | Screw (Replaces: 7101P349-60) | 11 |
|
$ 6.95 | ||||
| 6 | W10823707 | Element W/limiter (8``) (Replaces: 74002649) | 16 |
|
Immediately | $ 316.13 | |||
| 6 | W10823707 | Element W/limiter (8``) (Replaces: 74001012) | 11 |
|
Immediately | $ 316.13 | |||
| 6 | 74002652 | Limiter (8``) | 16 |
|
- | ||||
| 6 | Y04000063 | Limiter (8`` Element) | 11 |
|
- | ||||
| 7 | 7112P091-60 | Clip, Retainer | 11 |
|
- | ||||
| 7 | W10124350 | Not Required Part Or See Note | 13 |
|
- | ||||
| 8 | 74003100 | Top, Main (blk Glass/blk Top) | 25 |
|
- | ||||
| 8 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 8 | 74002150 | Top, Main Glass Assy. (blk) | 11 |
|
- | ||||
| 9 | 7746P030-60 | End Cap (rt-blk) | 11 |
|
$ 26.16 | ||||
| 9 | 7746P031-60 | End Cap (lt-blk) | 11 |
|
$ 26.25 | ||||
| 9 | WP3195558 | Nut, Speed (Replaces: 7103P044-60) | 11 |
|
$ 7.68 | ||||
| 10 | 74001428 | Spacer, Main Top | 11 |
|
- | ||||
| 11 | 74002667 | Limiter | 16 |
|
- | ||||
| 11 | W10823703 | Element, Ceran. Dual (Replaces: 74002666) | 16 |
|
Immediately | $ 204.99 | |||
| 11 | 74002176 | Limiter (dual) | 11 |
|
- | ||||
| 11 | W10823703 | Element, Dual Ceran (lg) (Replaces: 74002151) | 11 |
|
Immediately | $ 204.99 | |||
| 12 | W10124350 | Not Required Part Or See Note | 25 |
|
- | ||||
| 12 | 74001437 | Spring, Ceramic Element | 13 |
|
- | ||||
| 13 | 74003072 | Support, Ceramic Element | 25 |
|
- | ||||
| 14 | 74003053 | Light, Indicator | 25 |
|
- | ||||
| 15 | CERAMABRYTE | Cleaner, Elco (Replaces: 8308P002-60) | 11 |
|
Immediately | $ 9.95 | |||
| 15 | WA906B | Scraper, Razor (Replaces: 8312P001-60) | 11 |
|
Immediately | $ 4.86 |
