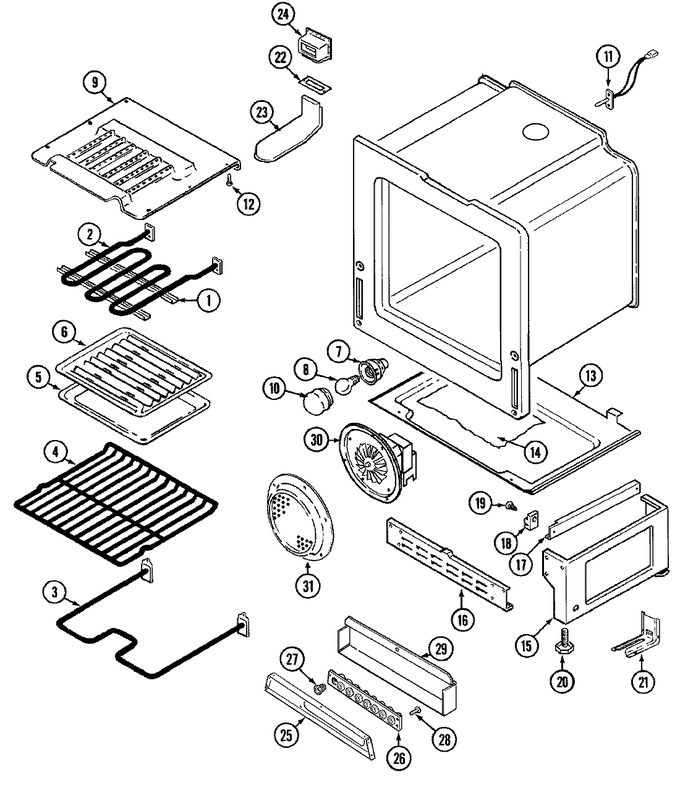

01 - Body
02 - Control Panel
03 - Door/drawer
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3807F387-45 | Support, Broil Element | 11 |
|
- | ||||
| 2 | WPY04000059 | Element, Broil (Replaces: Y04000059) | 11 |
|
$ 159.00 | ||||
| 2 | W11772394 | Screw (Replaces: 7101P345-60) | 11 |
|
Immediately | $ 10.94 | |||
| 3 | WP74003019 | Element, Bake (Replaces: 74003019) | 11 |
|
Immediately | $ 51.10 | |||
| 4 | WPW10282492 | Rack, Oven (Replaces: 74001757) | 22 |
|
Immediately | $ 65.15 | |||
| 4 | WPW10282492 | Rack, Oven (Replaces: 74002105) | 11 |
|
Immediately | $ 65.15 | |||
| 5 | 3401F014-19 | Pan, Broil | 11 |
|
- | ||||
| 6 | 4396923 | Insert, Broil Pan (Replaces: 3413F013-19) | 11 |
|
Immediately | $ 52.04 | |||
| 7 | WP7407P182-60 | Receptacle, Bulb (Replaces: 7407P088-60) | 11 |
|
Immediately | $ 66.10 | |||
| 8 | 8009 | Bulb-oven (Replaces: 7407P103-60) | 11 |
|
Immediately | $ 16.80 | |||
| 9 | 3601F237-47 | Baffle, Broil | 11 |
|
- | ||||
| 10 | WP9781049 | Cover, Bulb (Replaces: 7724P047-60) | 11 |
|
Immediately | $ 71.93 | |||
| 11 | 12001656 | Sensor, Oven (long) (Replaces: 74003095) | 11 |
|
Immediately | $ 39.55 | |||
| 12 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 13 | 3804F112-51 | Retainer, Insulation | 11 |
|
- | ||||
| 13 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 14 | 8312P058-60 | Foil, Insulation Retainer | 11 |
|
- | ||||
| 15 | 4020W017-80 | Pedestal, Sides | 11 |
|
- | ||||
| 16 | 4020F001-80 | Pedestal, Front/rear | 11 |
|
- | ||||
| 16 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 17 | 3406F028-51 | Runner, Drawer | 11 |
|
- | ||||
| 18 | 8004P033-60 | Support, Drawer | 11 |
|
- | ||||
| 19 | WPW10348409 | Screw (8abx13/16-zn) (Replaces: 74001449) | 11 |
|
Immediately | $ 6.98 | |||
| 20 | 74001311 | Leg, Leveling | 11 |
|
- | ||||
| 21 | WP7101P485-60 | Screw (Replaces: 7101P344-60) | 11 |
|
$ 26.33 | ||||
| 21 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 11 |
|
Immediately | $ 4.69 | |||
| 22 | 7201P054-60 | Gasket, Vent | 11 |
|
- | ||||
| 23 | 4006W107-45 | Vent Box Assy. | 11 |
|
- | ||||
| 24 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 11 |
|
Immediately | $ 12.62 | |||
| 24 | 3826W014-45 | Extension, Vent | 11 |
|
- | ||||
| 25 | 74001339 | Bracket, Fuse Holder | 11 |
|
- | ||||
| 26 | 7401P031-60 | Block, Fuse | 11 |
|
- | ||||
| 27 | 7416P006-60 | Fuse, 125v 15a | 11 |
|
- | ||||
| 27 | 7416P005-60 | Fuse, 125v 20a | 11 |
|
- | ||||
| 27 | 7416P004-60 | Fuse, 125v 30a | 11 |
|
- | ||||
| 28 | WP3400074 | Screw (Replaces: 7101P068-60) | 11 |
|
$ 6.47 | ||||
| 29 | 4005F445-51 | Cover, Fuse Block | 11 |
|
- | ||||
| 30 | 74002125 | Fan, Convection Assy. | 11 |
|
- | ||||
| 31 | 74002126 | Cover, Fan Assy. | 11 |
|
- |
