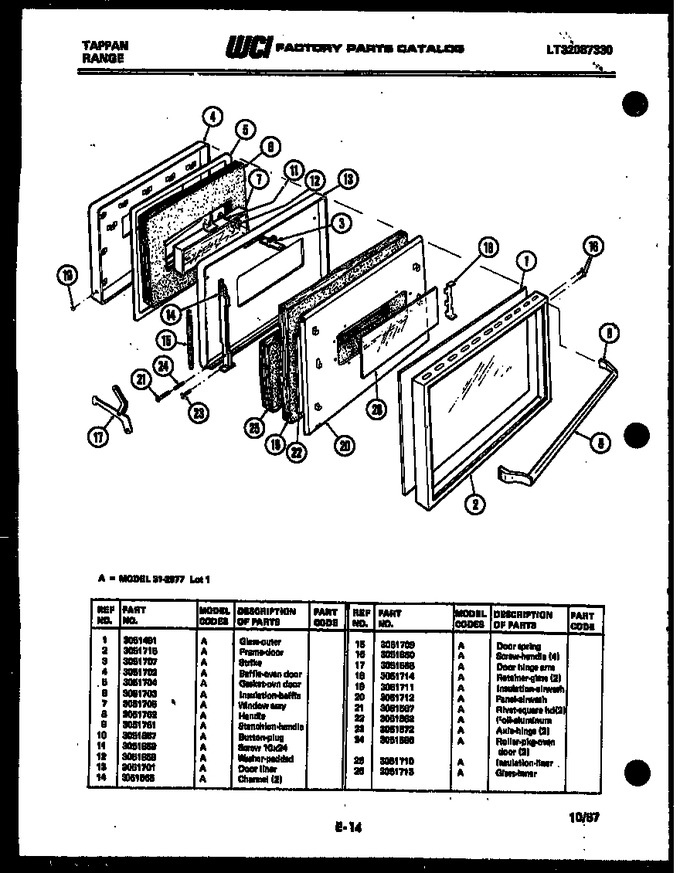

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3051491		Glass-outer		Appelez-nous	-
2	3051715		Frame-door		Appelez-nous	-
3	3051707		Strike		Appelez-nous	-
4	3051702		Baffle-oven Door		Appelez-nous	-
5	3051704		Gasket-ovn Door		Appelez-nous	-
6	3051703		Insulation-baffle		Appelez-nous	-
7	3051705		Window Assy.		Appelez-nous	-
8	3051762		Handle		Appelez-nous	-
9	3051761		Stanchion-handle		Appelez-nous	-
10	3051857		Button-plug		Appelez-nous	-
11	3051859		Screw 10 X 24		Appelez-nous	-
12	3051858		Washer-padded		Appelez-nous	-
13	3051701		Door Liner		Appelez-nous	-
14	3051565		Channel (2)		Appelez-nous	-
15	3051709		Door Spring		Appelez-nous	-
16	3051860		Screw Handle (4)		Appelez-nous	-
17	3051568		Door Hinge Arm		Appelez-nous	-
18	3051714		Retainer, Glass (2)		Appelez-nous	-
19	3051711		Insulation - Airwash		Appelez-nous	-
20	3051712		Panel, Airwash		Appelez-nous	-
21	3051567		Rivet-square Hd (2)		Appelez-nous	-
22	3051862		Foil, Aluminum		Appelez-nous	-
23	3051572		Axle-hinge (2)		Appelez-nous	-
24	3051566		Roller-pkg-oven Door (2)		Appelez-nous	-
25	3051710		Insulation-liner		Appelez-nous	-
26	3051713		Glass - Inner		Appelez-nous	-
