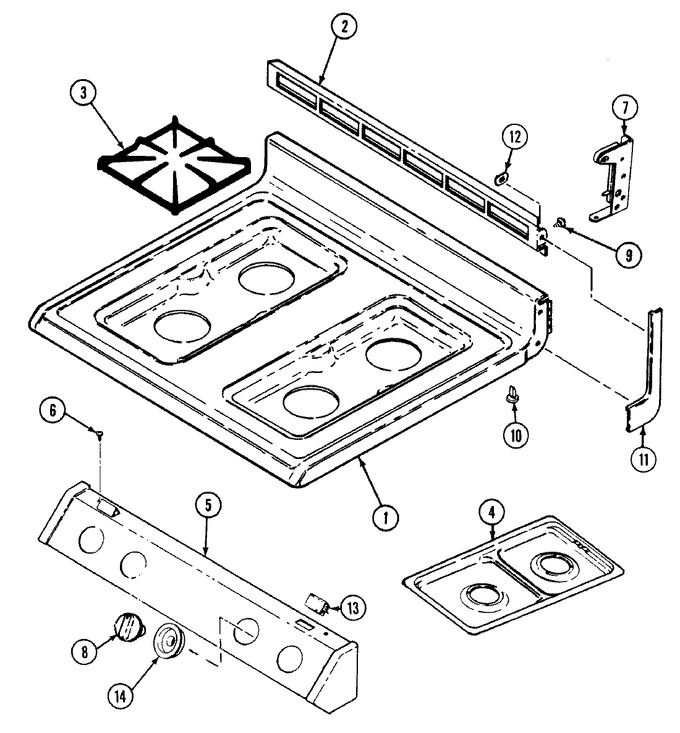

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74001532 | Top, Main (wht) | 11 |
|
- | ||||
| 2 | 3608F042-26 | Trim, Vent (dark Gray) | 11 |
|
- | ||||
| 3 | 2003W027-26 | Grate (gry) | 11 |
|
- | ||||
| 4 | 5401A452-60 | Drip Bowl Kit (accessory) | 11 |
|
- | ||||
| 5 | 7712P174-60 | Panel, Manifold (wht) | 11 |
|
- | ||||
| 6 | W11233072 | Screw, Housing (Replaces: 7118P015-60) | 11 |
|
Immediately | $ 12.62 | |||
| 7 | 8114P348-60 | Cover, Hinge Support | 11 |
|
- | ||||
| 7 | 3807F454-51 | Support, Main Top (lt) | 11 |
|
- | ||||
| 7 | 3807F453-51 | Support, Main Top (rt) | 11 |
|
- | ||||
| 8 | WP74003769 | Knob, Valve (wht) (Replaces: 7733P093-60) | 11 |
|
$ 15.24 | ||||
| 9 | 7101P208-60 | Screw (10abx1/4p Tr Zn) | 11 |
|
$ 11.92 | ||||
| 10 | 8016P013-60 | Glide | 11 |
|
- | ||||
| 11 | 7746P032-60 | End Cap, Top (rt-wht) | 11 |
|
- | ||||
| 11 | 8270P095-60 | Tape, Double Sided | 11 |
|
- | ||||
| 11 | 7746P033-60 | End Cap, Top (lt-wht) | 11 |
|
- | ||||
| 12 | WP3195558 | Nut, Speed (Replaces: 7103P129-60) | 11 |
|
$ 7.68 | ||||
| 13 | 7112P087-60 | Clip, Top Locking | 11 |
|
- | ||||
| 14 | 7740P070-60 | Bezel, Knob (wht) | 11 |
|
- |
