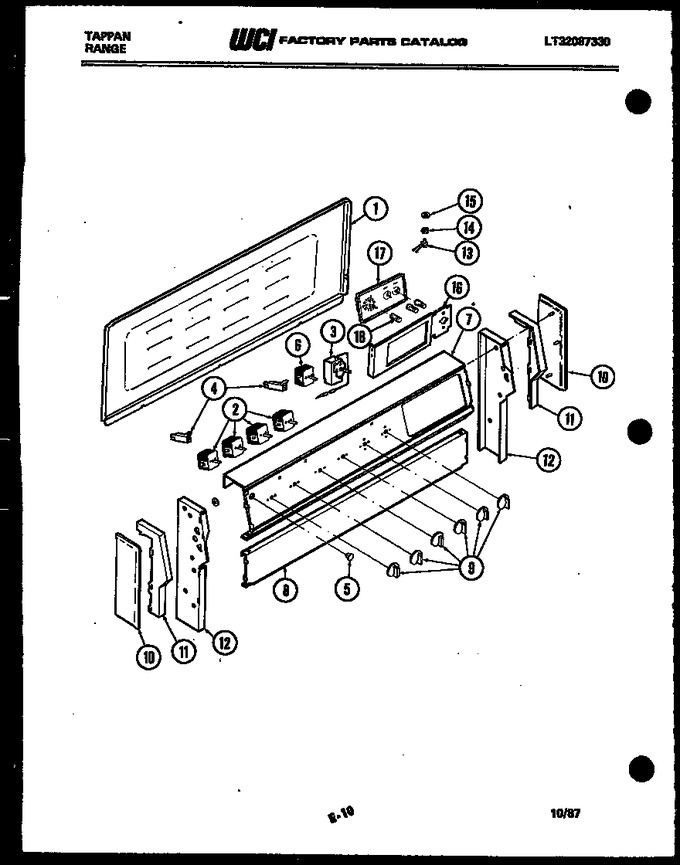

02 - Backguard


03 - Body Parts


04 - Door Parts


05 - Cooktop Parts


06 - Drawer Parts


07 - Broiler Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3051758		Cover-wire		Appelez-nous	-
2	3051681		Sw.-surface Unit Med.		Appelez-nous	-
2	3051680		Sw.-surface Unit-small (2)		Appelez-nous	-
2	3051682		Sw.-surface Unit-auto.		Appelez-nous	-
3	3051683		Thermostat		Appelez-nous	-
4	3051679		Signal Light-oven		Appelez-nous	-
4	3051676		Signal Lite-surface Unit & Clean		Appelez-nous	-
4	3051678		Signal Lite-surface Unit-auto		Appelez-nous	-
5	3051677		Lens-signal Lite (3)		Appelez-nous	-
6	3051684		Switch-ov. Sel.		Appelez-nous	-
7	3051668		Panel-backguard		Appelez-nous	-
8	3051720		Panel-backsplash-almd		Appelez-nous	-
9	3051597		Knob-surface Unit Auto		Appelez-nous	-
9	3051690		Knob-thermostat		Appelez-nous	-
9	3051688		Knob-surface Unit (3)		Appelez-nous	-
9	3051691		Knob-sel. Sw.		Appelez-nous	-
10	3051675		Body-end Cap-l.h.		Appelez-nous	-
10	3051674		Body-end Cap-r.h.		Appelez-nous	-
11	3051672		Trim-end Cap-r.h.		Appelez-nous	-
11	3051673		Trim-end Cap-l.h.		Appelez-nous	-
12	3051671		Supt-backgrd Lh		Appelez-nous	-
12	3051670		Supt-backgrd Rh		Appelez-nous	-
13	3051687		Switch-ov. It.		Appelez-nous	-
14	K1186512		Nut-hex Flat		Appelez-nous	-
15	3009053		Nut-knurled		Appelez-nous	-
16	3051686		Bracket-mounting		Appelez-nous	-
17	3051685		Timer		Appelez-nous	-
18	358T201P01		Knob, Clock (3)		Appelez-nous	-
