SELECT A DIAGRAM

01 - Black Glass Door

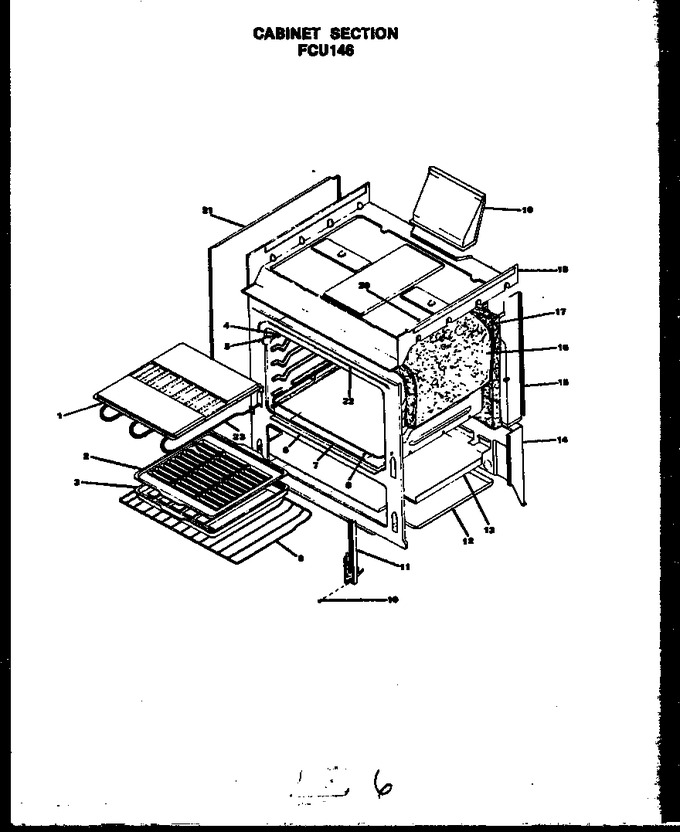

02 - Cabinet Section


03 - Mini Rail


04 - Page 1


05 - Range Top Section


06 - Standard Back Rail


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0041428		Smoke Eliminator Assy Can Wo		Appelez-nous	-
1	0040888		Broil Element Retainer Eu, Eo		Appelez-nous	-
1	0041798		Screw 8-18x.875 B Hx Hd		Appelez-nous	-
2	4396923		Broiler Grid   (Replaces: Y0098682)			Immediately	$ 52.04
3	4396923		Broiler Pan   (Replaces: 11161)			Immediately	$ 52.04
4	73028		Fastener		Appelez-nous	-
5	Y0042175		Bulb, Light		Appelez-nous	-
6	Y0040638		Insulation Cover Eu&ei Japan		Appelez-nous	-
7	0040119		Sub 40119cg, Oven Bottom		Appelez-nous	-
8	0042136		Bake Element 1976 Req		Appelez-nous	-
9	40183		Oven Wire Rack		Appelez-nous	-
10	Y0041802		Screw		Appelez-nous	-
11	Y0041907		Hinge 1972 Ovens		Appelez-nous	-
12	R90132		Compartment Bottom   (Replaces: 40132)		Appelez-nous	-
13	40661		Bottom Insulation Cover		Appelez-nous	-
14	Y0040352		Cabinet Back W/a Ku-617 647		Appelez-nous	-
15	40340		Cabinet Back, Upper		Appelez-nous	-
16	Y0041966		Insulation,wrapper		Appelez-nous	-
17	Y0041963		Sub 41966, Insulation 2x20x65		Appelez-nous	-
18	40459		Burner Box		Appelez-nous	-
19	0040570		Flue Box Crimp		Appelez-nous	-
20	Y0042007		Top Spacer		Appelez-nous	-
21	40288L		Cabinet Side, Rt. Almond		Appelez-nous	-
21	40289L		Cabinet Side, Lt. Almond		Appelez-nous	-
22	0042399		Door Seal Assy Th&mh Odoor		Appelez-nous	-
23	WPY04000059		Element,broil   (Replaces: Y0042157)				$ 159.00
NI	0042185		Term Blk 1m-min		Appelez-nous	-
NI	40266		Broil Door Liner		Appelez-nous	-
NI	41513		Control		Appelez-nous	-
NI	0041024		Unit Support Brkt		Appelez-nous	-
NI	0042470		Rt Side Trim Annl Contract		Appelez-nous	-
NI	Y0042005		Sub 63661, Bumper Oven Door		Appelez-nous	-
NI	0041879		Oven Bottom Plate Clip Eu Ei		Appelez-nous	-
NI	Y0041322		Leg Leveler Assy		Appelez-nous	-
NI	Y0040698		Terminal Block Cover Eu`s		Appelez-nous	-
NI	0042739		Spring		Appelez-nous	-
NI	Y0040644		Orifice Access Cover		Appelez-nous	-
NI	0041876		Door Seal Clips		Appelez-nous	-
NI	0040877		Bracket Conduit Mtg Qco454		Appelez-nous	-
NI	Y0040655		Rear Wire Shield-eu`s Jap		Appelez-nous	-
NI	41514		Broil Door Hinge - Lt.		Appelez-nous	-
NI	Y0042660		Plug Button Black 1/2``		Appelez-nous	-
NI	Y0042471		Lt Side Trim Annl Contract		Appelez-nous	-
NI	0042662		Plug Button For 7/32 Hole		Appelez-nous	-
NI	41874		Thermostat Bulb Clip, Lower Ov		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
