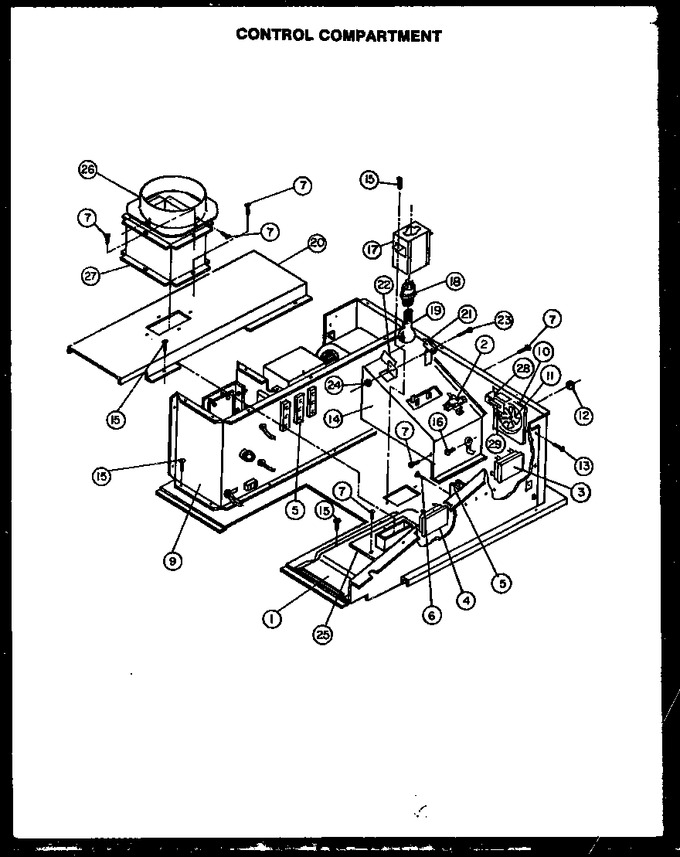

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0040586		Flue Box, Upper		Appelez-nous	-
2	0052384		Switch, Fan		Appelez-nous	-
3	Y0052502		Thermostat		Appelez-nous	-
5	Y0042191		Term Blk Eo&go 1m-2.5m-5m-10m		Appelez-nous	-
6	Y0041813		Screw Cabinet Trim		Appelez-nous	-
7	Y41808		Screw		Appelez-nous	-
10	0040906		Motor Mount Pyro W/o		Appelez-nous	-
11	Y0042754		Blade, Fan		Appelez-nous	-
12	M0282005		Nut K   (Replaces: Y0097887)				$ 7.07
13	Y41808		Screw		Appelez-nous	-
14	Y0052695		Duct, Magnetron		Appelez-nous	-
15	Y71642		Screw		Appelez-nous	-
16	Y00000000		See Note Screw, Grounding -- (not Used)		Appelez-nous	-
17	Y0051688		Cover, Receptacle		Appelez-nous	-
18	73028		Fastener		Appelez-nous	-
19	Y0042175		Bulb, Light		Appelez-nous	-
20	Y0040842		Flue Box Cover Rep 915		Appelez-nous	-
21	66207		Sail Switch				$ 20.50
22	Y0091523		Insulation, Esm		Appelez-nous	-
23	Y67921		Screw.		Appelez-nous	-
24	77906		Keps Nut, Hex		Appelez-nous	-
28	Y0052814		Bracket, Switch		Appelez-nous	-
29	66207		Sail Switch				$ 20.50
NI	67972		Clip, Lens			Immediately	$ 10.80
NI	Y0042226		Fan Motor		Appelez-nous	-
NI	67985		Lens, Oven Light		Appelez-nous	-
NI	51653		Vent Tube		Appelez-nous	-
NI	Y0040842		Flue Box Cover Rep 915		Appelez-nous	-
