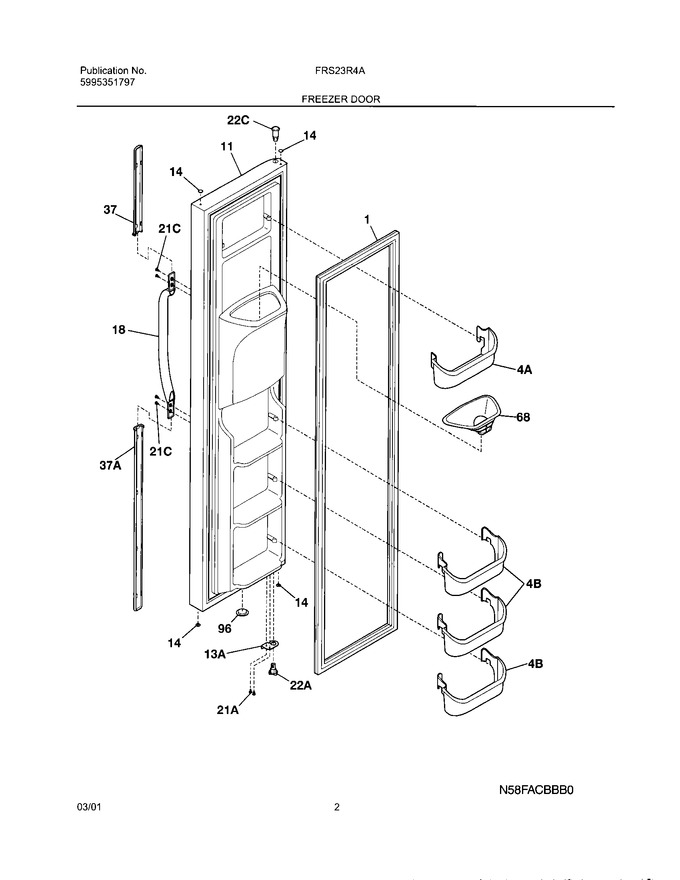

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241786016		Gasket-door,white   (Replaces: 240390604)				$ 93.12
4	240359001		Bin-door			Immediately	$ 68.11
4	240367301		Bin-door,frzr-upper			Immediately	$ 44.68
11	240451825		Door-frzr,bisque ,complete Assy		Appelez-nous	-
13	240456904		Door Stop,bisque ,frzr		Appelez-nous	-
14	218915704		Plug-button,bisque		Appelez-nous	-
18	218762706		Handle-door,bisque				$ 158.76
21	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
21	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
22	242000501		Bearing-hinge,closer   (Replaces: 240328202)				$ 7.14
22	240328402		Bearing-hinge,upper				$ 19.85
37	218676004		Band-decorative,satin Aluminum ,handle Trim				$ 57.60
37	215782300		Lock-handle Trim,snap-in				$ 34.49
37	218811632		Trim-handle,bisque ,upper		Appelez-nous	-
37	218811631		Trim-handle,bisque ,lower		Appelez-nous	-
68	240321902		Chute-ice		Appelez-nous	-
96	240345503		Plug-foam Hole,white		Appelez-nous	-
NI	240323201		Wiring Harness		Appelez-nous	-
NI	240545201		Connector-water,straight   (Replaces: 240352101)				$ 73.71
