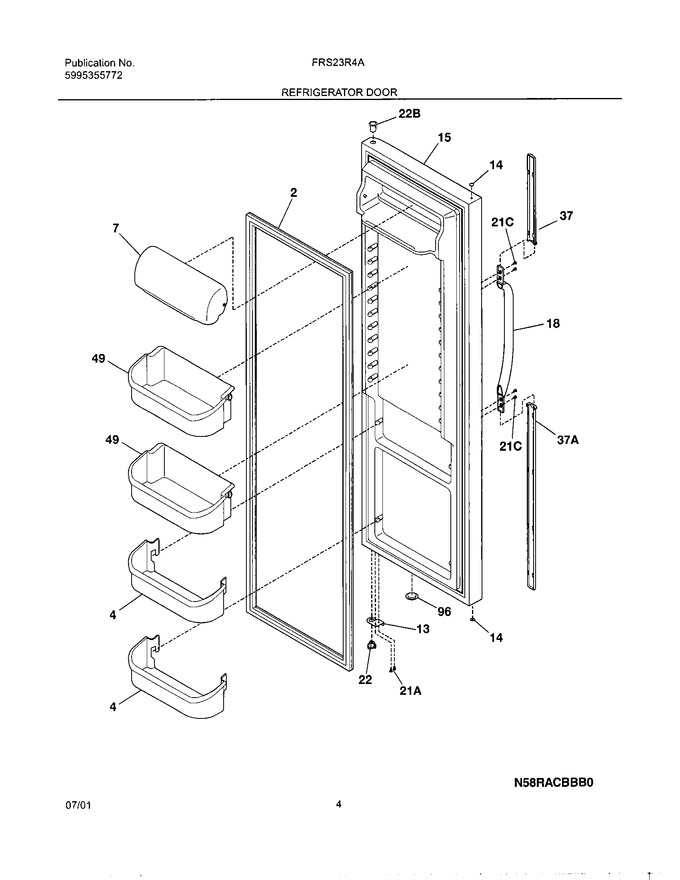

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240363701		Bin-door,2-liter			Immediately	$ 59.42
7	240338313		Door-dairy   (Replaces: 240338303)			Immediately	$ 80.80
13	5303918455		Door Stop,bisque ,ref   (Replaces: 240456903)				$ 142.04
14	218915704		Plug-button,bisque		Appelez-nous	-
15	240451916		Door-refr,bisque ,complete Assy		Appelez-nous	-
18	218762706		Handle-door,bisque				$ 158.76
22	240328201		Bearing-hinge,closer			Immediately	$ 17.72
37	218811632		Trim-handle,bisque ,upper		Appelez-nous	-
49	240324501		Bin-door,gallon			Immediately	$ 69.06
96	240345503		Plug-foam Hole,white		Appelez-nous	-
21A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
21C	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
22B	240328401		Bearing-hinge,upper				$ 12.97
37A	218676004		Band-decorative,satin Aluminum ,				$ 57.60
37A	218811631		Trim-handle,bisque ,lower		Appelez-nous	-
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
F2	241786015		Gasket-refr Door,white ,magnetic   (Replaces: 240390603)			Immediately	$ 94.66

    View Diagram in Separate Window       Print Part List
