SELECT A DIAGRAM

01 - Cabinet Assy


02 - Control Panel

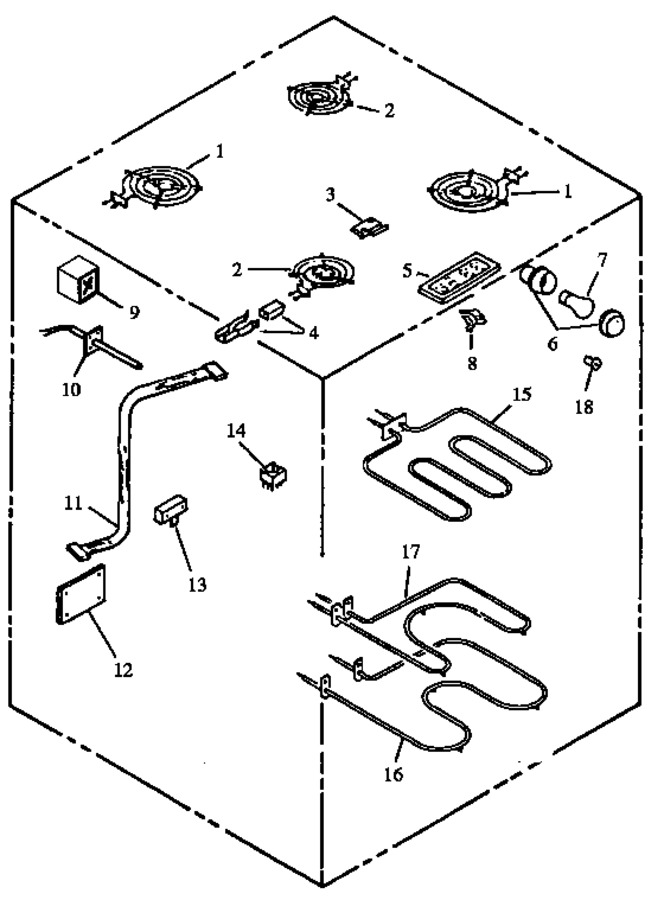

03 - Electrical Components


04 - Main Top And Oven Assy


05 - Oven Door Assy


06 - Storage Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3191454		Element, 5 Turn (2100w) 8``   (Replaces: Y0051572)				$ 163.63
2	WP3191455		Surface Element, 6`` 240 V. 125   (Replaces: Y0051575)				$ 133.85
3	Y0065780		Switch, Clean Circuit				$ 11.77
4	330031		Kit, Top Element Term Block   (Replaces: Y0089336)			Immediately	$ 14.48
5	0301293		Display Board (clock)		Appelez-nous	-
6	WP74011278		Assy, Oven Light   (Replaces: 74011278)				$ 101.56
7	Y0042175		Bulb, Light		Appelez-nous	-
11	Y0300808		Cable		Appelez-nous	-
12	Y0300807		P.c. Board, Power Supply		Appelez-nous	-
13	0042185		Term Blk 1m-min		Appelez-nous	-
14	Y0061389		Infinite Switch		Appelez-nous	-
15	WPY0061732		Element, Broil (240v-3000w)   (Replaces: Y0061732)				$ 158.37
16	WP77001096		Element, Bake (240v-2500w)   (Replaces: Y0300538)				$ 57.67
17	Y0300539		Element, Slo-cook		Appelez-nous	-
18	Y0091363		Switch, Oven Light		Appelez-nous	-
NI	Y0300662		Support		Appelez-nous	-
NI	WPW10245259		Strap, Ground   (Replaces: Y0306379)			Immediately	$ 31.65

    View Diagram in Separate Window       Print Part List
