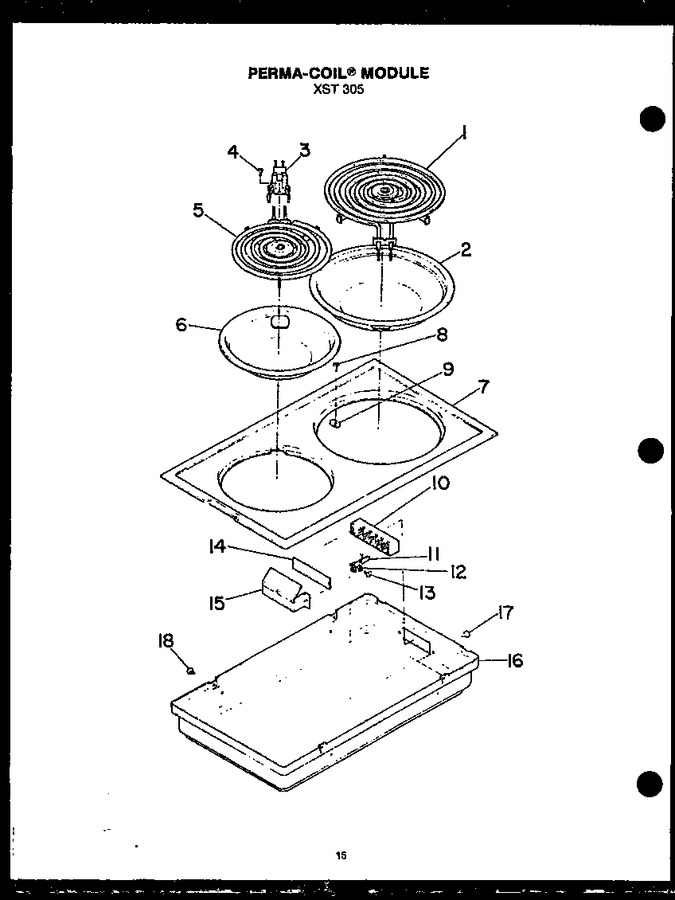

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3191454		Element, 5 Turn (2100w) 8``   (Replaces: Y0051572)				$ 163.63
2	X042144		Pkg. 160, B.b. 8``		Appelez-nous	-
3	330031		Kit, Top Element Term Block   (Replaces: Y0089336)			Immediately	$ 14.48
3	Y0053131		Mounting Brkt. Plug Block		Appelez-nous	-
4	Y0041785		Screw, No.6-32 X .250 Pan Hd Ph		Appelez-nous	-
5	WP3191455		Surface Element, 6`` 240 V. 125   (Replaces: Y0051575)				$ 133.85
6	X042143		Pkg. 160, B.b. 6``		Appelez-nous	-
7	Y0040084		Sub 300753k, Module Top, Chrom		Appelez-nous	-
8	0041786		Tapng Screw 6 32x1/2 Ph P Hd		Appelez-nous	-
9	0041859		Weld Nut 6-32 Can Tops		Appelez-nous	-
10	Y0042211		Module, Plug Block		Appelez-nous	-
11	Y0052040		Contact, Spade-power		Appelez-nous	-
11	Y0052041		Contact, Spade-ground				$ 4.83
12	0043666		5644044 Jumper Wire		Appelez-nous	-
13	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
14	Y0041994		Insulator-cooktop Module		Appelez-nous	-
15	Y0040964		Plug Block Mtg Brkt		Appelez-nous	-
16	Y0040601		Pan, Module-galv		Appelez-nous	-
17	Y0041785		Screw, No.6-32 X .250 Pan Hd Ph		Appelez-nous	-
18	Y0041785		Screw, No.6-32 X .250 Pan Hd Ph		Appelez-nous	-
