SELECT A DIAGRAM

01 - Black Glass Door Assy


02 - Cabinet Section


03 - Control Panel Section


04 - Door Latch Assy


05 - Glass-ceramic Module Sxt 307


06 - Mini Rail


07 - Oven Accessories


08 - Page 11


09 - Perma-coil Module Sxt 305


10 - Range - Back Panel


11 - Range Top Section


12 - Solid Element Module Sxt 102


13 - Storage Drawer-door Section Black Panel

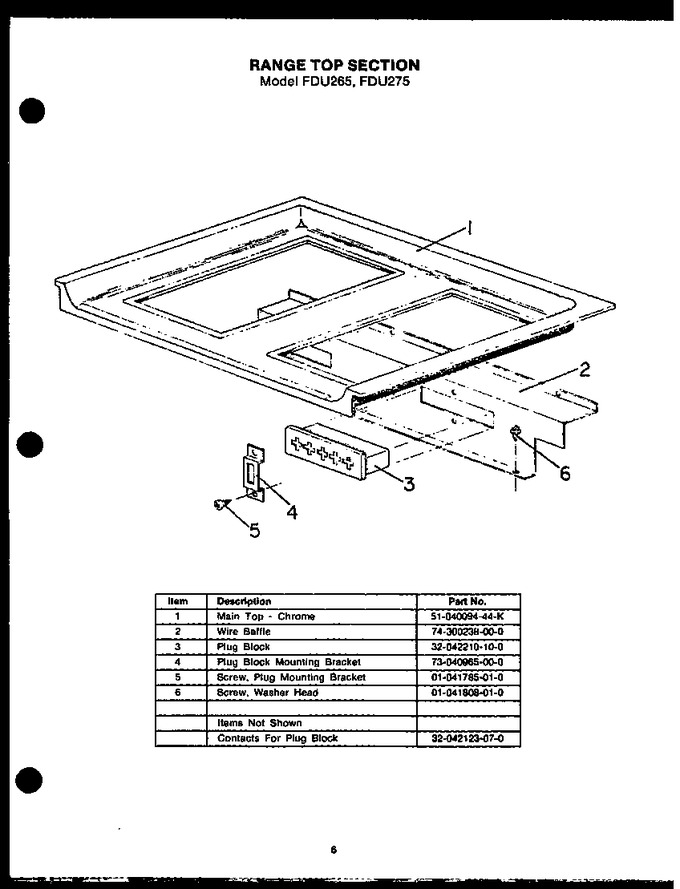

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0040094		Main Top, Chrome		Appelez-nous	-
2	0300238		Burner Assy., Top		Appelez-nous	-
3	Y0042210		Plug Block Modular Top		Appelez-nous	-
4	Y0040965		Plug Block Mtg Brkt Et590 595		Appelez-nous	-
5	Y0041785		Screw, No.6-32 X .250 Pan Hd Ph		Appelez-nous	-
6	WP90767		Screw   (Replaces: Y0041808)			Immediately	$ 7.04
NI	Y0042123		Element, Contact-module Top		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
