SELECT A DIAGRAM

01 - Cabinet Top


02 - Clothes Drum


03 - Control Panel, Control Hood And Controls


04 - Door Release


05 - Exhaust Fan


06 - Front Frame And Air Shroud


07 - Heater Box


08 - Loading Door


09 - Motor, Idler And Belt


10 - Panels


11 - Rear Frame And Frame Base


12 - Wire And Terminals

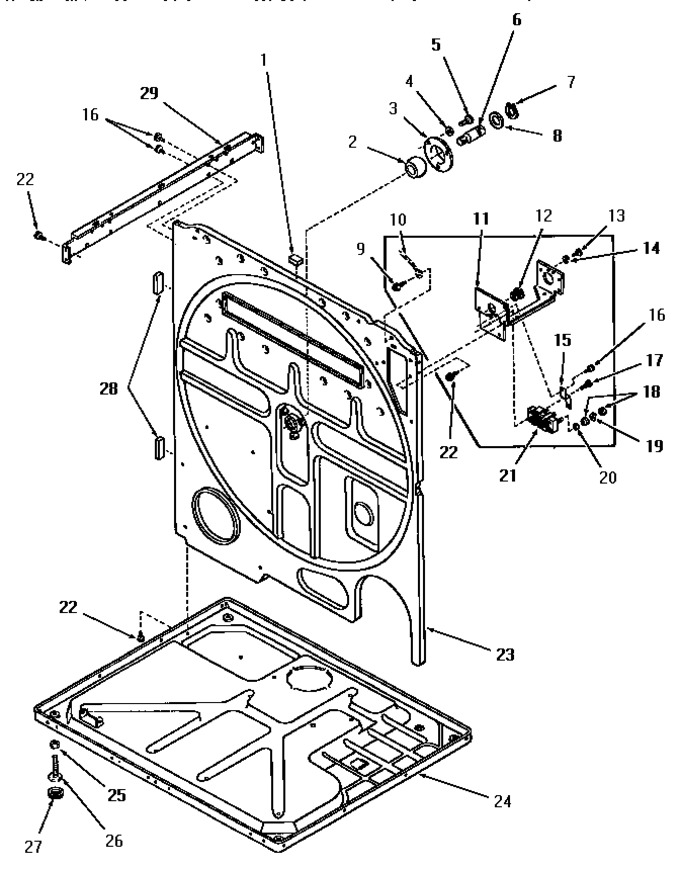

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	54024		Bumper				$ 20.02
2	Y52079		Bearing,drum Shaft		Appelez-nous	-
3	51826		Cover,bearing		Appelez-nous	-
4	03189		Lockwasher,1/4 Std-c P		Appelez-nous	-
5	53589		Screw,1/4-20 X 5/8 Hex		Appelez-nous	-
6	53132		Shaft,drum		Appelez-nous	-
7	70061		Ring,retaining				$ 1.70
8	Y52564		Washer		Appelez-nous	-
9	51784		Screw,10b-16 X 1/2 Hex		Appelez-nous	-
10	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
11	Y52110		Terminal Block Bracket		Appelez-nous	-
12	Sub. To D510402P		Relief,strain   (Replaces: 52113)		Appelez-nous	-
13	Sub. To D513139P		Screw,10b-16 X 1/2 Hex   (Replaces: 52909)		Appelez-nous	-
14	51474		Washer,13/64idx1/2odx.				$ 4.35
15	53950		Strap,ground		Appelez-nous	-
16	WP3390631		Hex Head Screw   (Replaces: 51780)				$ 7.04
17	Q6535		Screw,10b-16 X 3/4 Rou		Appelez-nous	-
18	Q6163		Nut				$ 2.09
19	51474		Washer,13/64idx1/2odx.				$ 4.35
20	Q6623		Washer		Appelez-nous	-
21	W11705611		Block,terminal   (Replaces: 50854)				$ 87.34
22	WP27001200		Hex Head Scrw   (Replaces: 25723)				$ 6.91
23	52574		Frame,rear		Appelez-nous	-
24	Y52572		Frame Base		Appelez-nous	-
25	52794		Nut, Hex 3/8-16		Appelez-nous	-
26	WP233550		Foot,adjustable   (Replaces: Y52696)				$ 7.16
27	70282		Foot,rubber		Appelez-nous	-
28	20354		Bumper Pad		Appelez-nous	-
29	51818		Support Channel, Right Or Left		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
