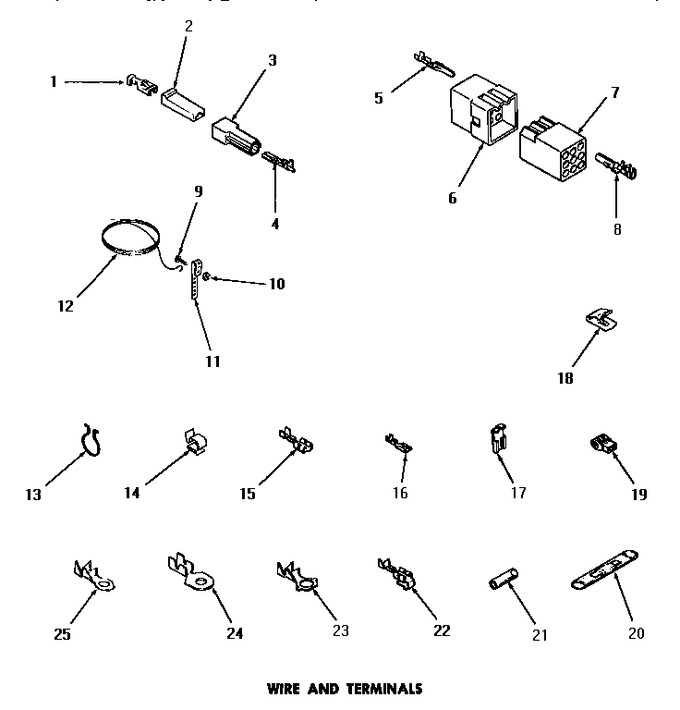

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00115		Terminal,spade-1/4 Fem		Appelez-nous	-
2	90789		Connector		Appelez-nous	-
3	90788		Housing,tab		Appelez-nous	-
4	00133		Terminal,tab-1/4 Male		Appelez-nous	-
5	Y00127		Terminal,pin-1/8 Male		Appelez-nous	-
6	54522		Plug,nylon		Appelez-nous	-
7	54523		Receptacle,12 Circuit-		Appelez-nous	-
8	Y00128		Terminal,pin-1/8 Femal		Appelez-nous	-
9	21431		Round Head Screw		Appelez-nous	-
10	Y20276		Nut		Appelez-nous	-
11	21430		Strap,ground		Appelez-nous	-
12	Y21429		Ground Wire		Appelez-nous	-
13	51291		Clip,wire		Appelez-nous	-
14	21036		Clip,cable				$ 62.49
15	Y00119		Spade Terminal(18 Gauge)		Appelez-nous	-
16	00112		Terminal,spade-3/16 Fe		Appelez-nous	-
17	Y00120		Terminal,flag-1/4 Fema		Appelez-nous	-
18	21312		Cable Clip		Appelez-nous	-
19	70210		Insulator,blue		Appelez-nous	-
20	21091		Connector Two 1/4 Inch Male		Appelez-nous	-
21	Y21365		Insulator Sleeve		Appelez-nous	-
22	Y00114		Terminal,spade-1/4 Fem		Appelez-nous	-
23	Y00113		Terminal,ring-1/4 Stud		Appelez-nous	-
24	Y00111		Terminal,ring-10 Stud		Appelez-nous	-
25	00110		Terminal,ring-10 Stud				$ 9.23
NI	20680		18 Gauge Wire		Appelez-nous	-
NI	20679		Wire, 12 Gauge		Appelez-nous	-
