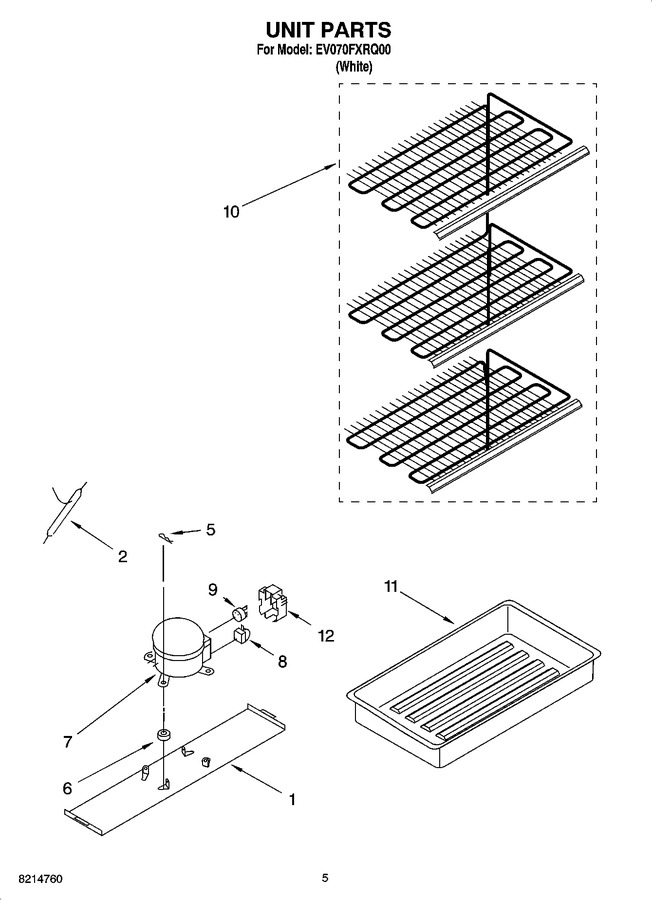

03 - Unit Parts
04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8210422 | Compressor Mounting Pan |
|
- | |||||
| 2 | 4001 | Drier (Replaces: 4357299) |
|
Immediately | $ 9.64 | ||||
| 5 | 4356336 | Pin, Hitch |
|
- | |||||
| 6 | 4356335 | Grommet, Compressor |
|
- | |||||
| 7 | WP4356794 | Compressor (includes Items 2, 6, 8, 9 & 17) (Replaces: 4356794) |
|
$ 393.59 | |||||
| 8 | 4356716 | Relay |
|
$ 96.72 | |||||
| 9 | 2264602 | Overload (Replaces: 4356717) |
|
$ 140.02 | |||||
| 10 | 8210423 | Evaporator Shelf Assembly (includes All 3 Shelves) |
|
- | |||||
| 11 | 8210421 | Pan, Drain |
|
- | |||||
| 12 | WP2162358 | Cover (Replaces: 4356599) |
|
$ 81.68 |
