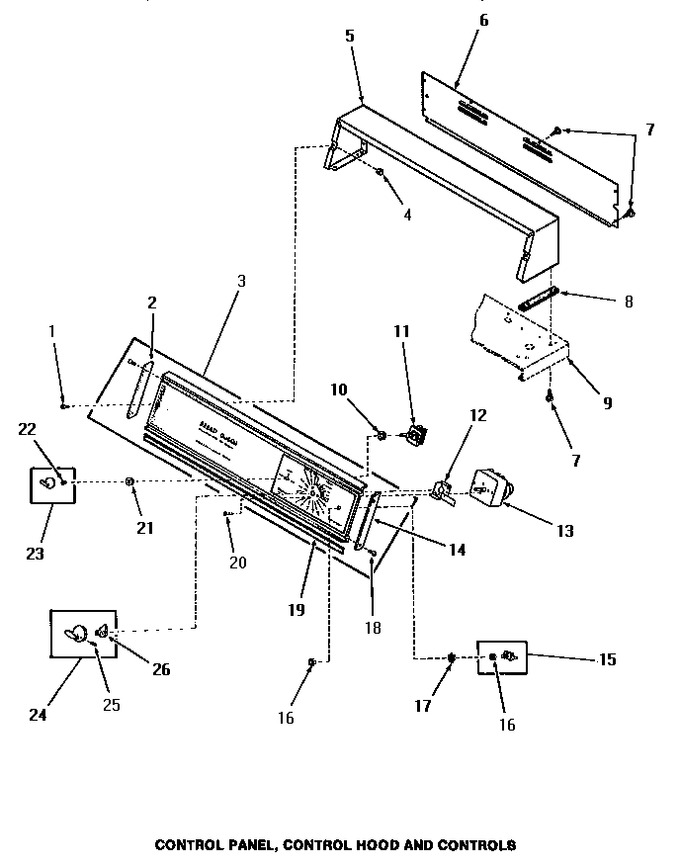

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 25232 | Screw,8ab-18x7/8 Oval |
|
- | |||||
| 2 | 25072 | End Cap, Left |
|
$ 32.09 | |||||
| 3 | 0055876 | Pulley Idler |
|
- | |||||
| 4 | 54038 | Nut,speed U-type |
|
- | |||||
| 5 | 55909W | Control Hood |
|
- | |||||
| 6 | 52539GR | Control Hood Rear Cover, Gray |
|
- | |||||
| 7 | 55985 | Screw,8b-18 X 3/8 Ind |
|
- | |||||
| 8 | 23028 | Gasket,control Box End |
|
- | |||||
| 9 | Y00000000 | See Note Cabinet Top |
|
- | |||||
| 10 | 91176 | Lockwasher,3/8 Intshkp |
|
$ 1.44 | |||||
| 11 | 52624 | Switch |
|
- | |||||
| 12 | 26952 | Spacer |
|
- | |||||
| 13 | 52610 | Timer |
|
- | |||||
| 14 | 25073 | End Cap, Right |
|
$ 38.89 | |||||
| 15 | 55882 | Assy, Switch (Replaces: 53768) |
|
Immediately | $ 61.79 | ||||
| 16 | Sub. To D513506 | Nut,hex 15/32-32 (Replaces: 52947) |
|
- | |||||
| 17 | 25820 | Lockwasher,1/2 Int Shk |
|
- | |||||
| 18 | Sub. To D512973 | Screw, 8b-16x5/8 Tap (Replaces: 52864) |
|
- | |||||
| 19 | Y0053880 | Actuator, Water |
|
- | |||||
| 20 | Y0054441 | Nameplate, Handle |
|
- | |||||
| 21 | 24205 | Nut,knurled 3/8-24 |
|
$ 244.00 | |||||
| 22 | 23392 | Clip For 26816 Knob |
|
- | |||||
| 23 | 24291 | Assy,knob |
|
- | |||||
| 24 | 24858 | Assy,knob-timer |
|
- | |||||
| 25 | 25285 | Setscrew |
|
- |
