SELECT A DIAGRAM

02 - Door, Lit/optional


03 - Cabinet


04 - Shelf


05 - Unit


06 - Liner

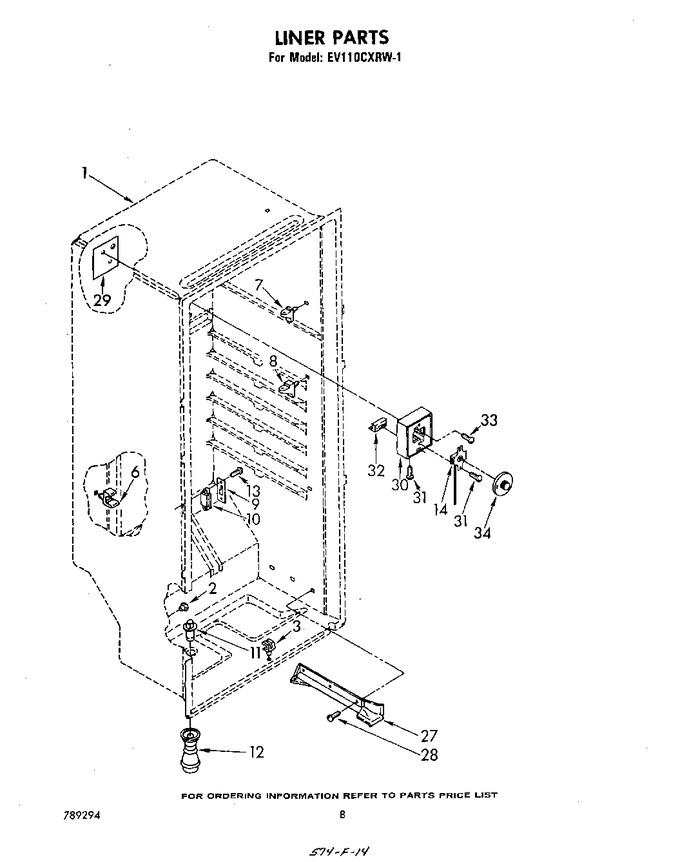

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	533881		Grommet (2)		Appelez-nous	-
3	1105350		Stud, Center		Appelez-nous	-
6	940144		Stud, Shelf (6)		Appelez-nous	-
7	940143		Stud, Shelf (2)		Appelez-nous	-
8	940142		Stud, Shelf (4)		Appelez-nous	-
9	940167		Strike, Lock		Appelez-nous	-
10	940168		Lock Strike, Back-up		Appelez-nous	-
11	934607		Drain, Ferrule Cap		Appelez-nous	-
12	942768		Fitting, Drain		Appelez-nous	-
13	W11693756		Screw, 8-15 X 5/8   (Replaces: 487042)			Immediately	$ 12.65
14	VF3		Thermostat & Barrier   (Replaces: 1105566)				$ 38.40
27	941776		Tube Entry Cover (bottom)		Appelez-nous	-
28	W11693756		Screw, 8-15 X 5/8   (Replaces: 487042)			Immediately	$ 12.65
29	940169		Shield, Liner		Appelez-nous	-
30	934927		Escutcheon, Thermostat		Appelez-nous	-
31	WP965173		Screw, 8-15 X 3/8a   (Replaces: 487584)			Immediately	$ 9.65
32	981990		Bracket & Switch Assembly		Appelez-nous	-
33	W11693756		Screw, 8 X 5/8a   (Replaces: 488687)			Immediately	$ 12.65
34	981853		Knob, Thermostat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
