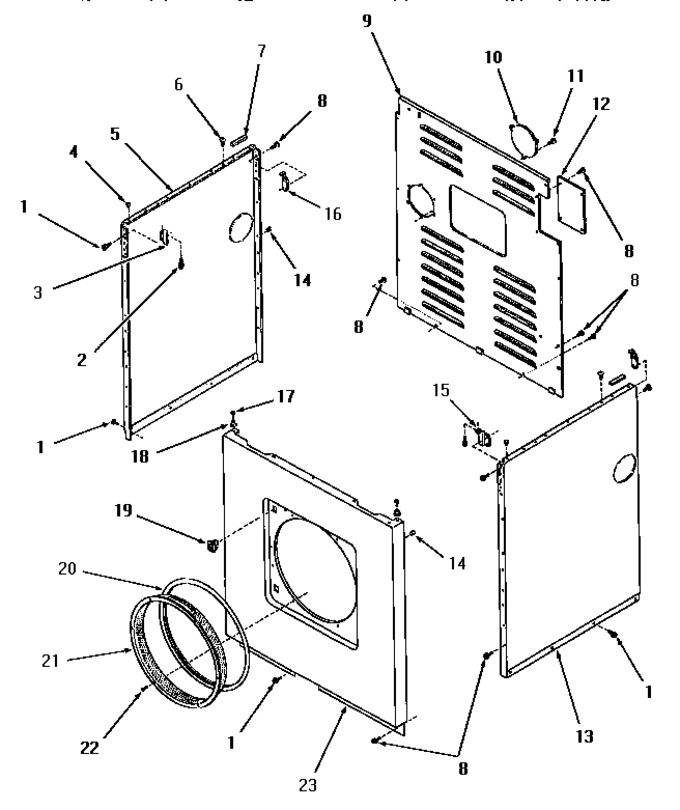

FE4170 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	51784	Screw,10b-16 X 1/2 Hex	Appelez-nous	-
2	23008	Screw,10-24 X 3/4 Sems			$ 6.95
3	22847	Bracket	Appelez-nous	-
4	21176	Bumper	Appelez-nous	-
5	55907A	Side Panel, Left, Avocado	Appelez-nous	-
5	55907W	Side Panel, Right, White	Appelez-nous	-
5	55907C	Side Panel, Left, Coppertone	Appelez-nous	-
5	55907H	Side Panel, Left, Harvest Gold	Appelez-nous	-
6	52442	Screw, No.10-16 X 3/8``	Appelez-nous	-
7	80312	Bumper Pad			$ 20.03
8	WP27001200	Hex Head Scrw (Replaces: 25723)			$ 6.91
9	52677GR	Panel,rear Xreplace	Appelez-nous	-
10	51855GR	Plate,cover	Appelez-nous	-
11	Sub. To D510151W	Screw, 6b-20x5/16 (Replaces: 51782)	Appelez-nous	-
12	52108GR	Terminal Block Access Plate, G	Appelez-nous	-
13	55908W	Side Panel, Right, White	Appelez-nous	-
13	55908H	Side Panel, Right, Harvest Gol	Appelez-nous	-
13	55908C	Side Panel, Right, Coppertone	Appelez-nous	-
13	55908A	Side Panel, Right, Avocado	Appelez-nous	-
14	20387	Bumper	Appelez-nous	-
15	22846	Bracket	Appelez-nous	-
16	52487	Lug,hold-down	Appelez-nous	-
17	Q6535	Screw,10b-16 X 3/4 Rou	Appelez-nous	-
18	23020	Mount,panel	Appelez-nous	-
19	LA-1003	Catch, Door (Replaces: 54660)		Immediately	$ 24.51
20	51799-PR	Seal,outer (Replaces: 51799)	Appelez-nous	-
21	52052GR	Duct Ring, Gray	Appelez-nous	-
22	Sub. To D510147P	Screw,8b-18 X 1/2 Rd H (Replaces: 51778)	Appelez-nous	-
23	55901C	Front Panel, Coppertone	Appelez-nous	-
23	55901H	Panel,front	Appelez-nous	-
23	55901W	Front Panel, White	Appelez-nous	-
23	55901A	Front Panel, Avocado	Appelez-nous	-
