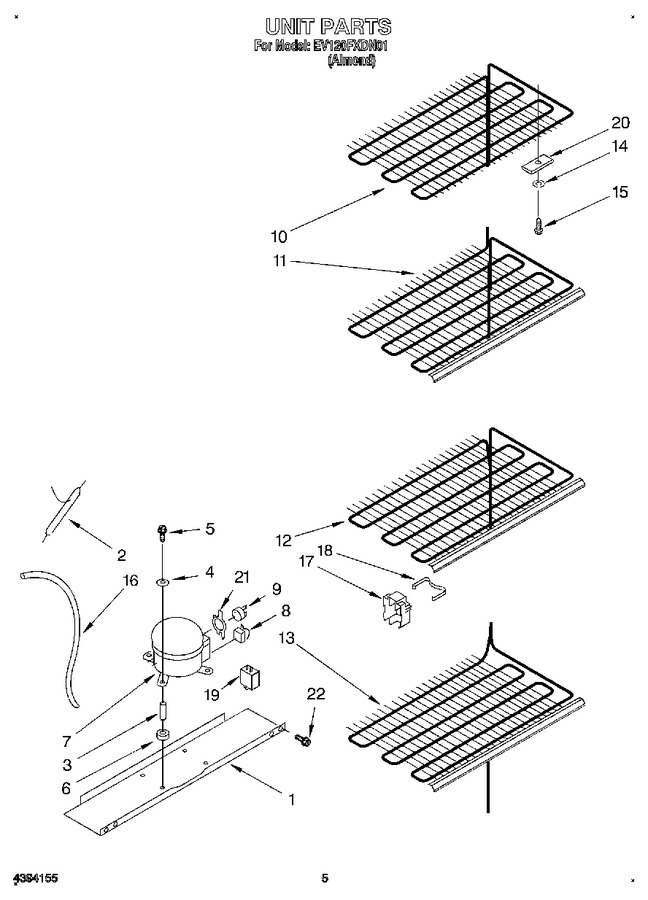

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4357105		Compressor Mounting Pan		Appelez-nous	-
2	4007A		Drier   (Replaces: 4356332)			Immediately	$ 13.55
3	4356846		Compressor Grommet Sleeve				$ 12.86
4	4356847		Washer		Appelez-nous	-
5	4357054		Compressor Mounting Screw		Appelez-nous	-
6	4356335		Compressor Grommet		Appelez-nous	-
7	4357131		Compressor		Appelez-nous	-
8	4356994		Relay		Appelez-nous	-
9	4357021		Overload		Appelez-nous	-
10	4356882		Evaporator Top		Appelez-nous	-
11	4357008		Evaporator Shelf		Appelez-nous	-
12	4356885		Evaporator Shelf		Appelez-nous	-
13	4356887		Evaporator Shelf		Appelez-nous	-
14	4357057		Washer		Appelez-nous	-
15	WP3-24004-109		Evaporator, Mounting Screw   (Replaces: 4357110)				$ 7.25
16	4356999		Heat Exchanger		Appelez-nous	-
17	4356946		Cover		Appelez-nous	-
18	4356951		Cover Clip		Appelez-nous	-
19	WPW10662129		Capacitor   (Replaces: 4357055)			Immediately	$ 52.97
20	4356854		Clamp		Appelez-nous	-
21	4356945		Clip, Overload		Appelez-nous	-
22	WP3-24838-048		Screw   (Replaces: 4356820)				$ 7.00
