01 - Cabinet Parts


02 - Liner Parts Parts Not Illustrated


03 - Unit Parts

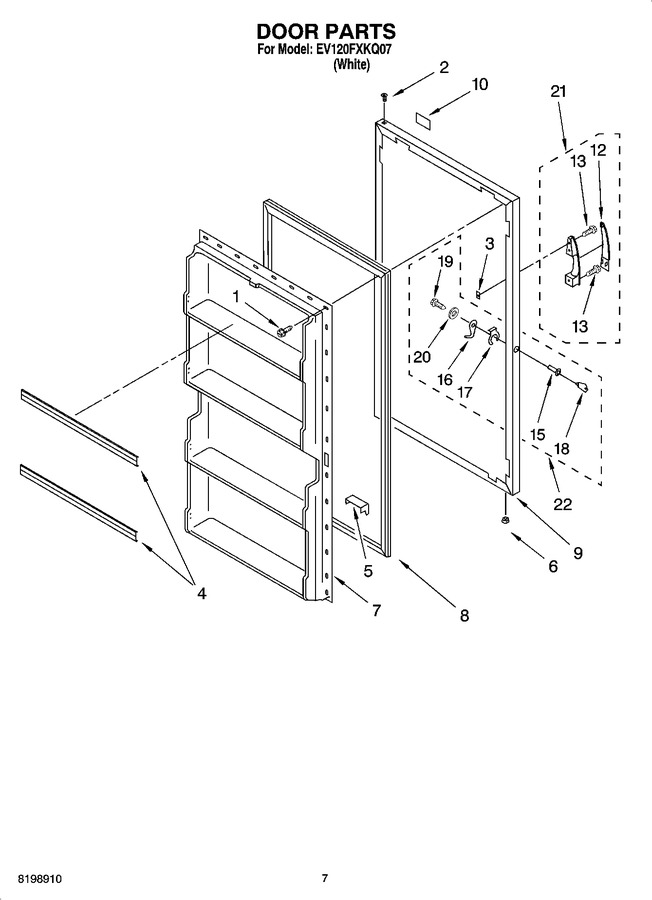

04 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390598		Screw   (Replaces: 4357290)				$ 18.89
2	4390659		Hinge, Bushing		Appelez-nous	-
3	4390918		Clip, Handle		Appelez-nous	-
4	4390606		Door Shelf Trim (4)		Appelez-nous	-
5	4356893		Foam Block		Appelez-nous	-
6	3-24898-007		Vent Plug   (Replaces: 4356894)				$ 9.72
7	4390694		Interior Door		Appelez-nous	-
8	4357136		Door Gasket				$ 173.12
9	4390920		Exterior Door		Appelez-nous	-
10	4390670		Nameplate		Appelez-nous	-
12	4390668		Insert, Handle		Appelez-nous	-
13	4390923		Bolt, Adjustable		Appelez-nous	-
15	4357145		Lock, Body   (Replaces: 4356839)				$ 23.82
16	4357224		Lock, Bolt		Appelez-nous	-
17	4356842		Spring Clip				$ 12.24
18	WP4356840		Key   (Replaces: 4356840)				$ 9.67
19	WP489478		Screw   (Replaces: 4356843)				$ 6.98
20	4356992		Washer		Appelez-nous	-
21	4390667		Handle Assembly (includes Items 12 & 13)		Appelez-nous	-
22	4357145		Lock Assembly (includes Items 15, 16, 17, 18, 19 & 20)				$ 23.82
