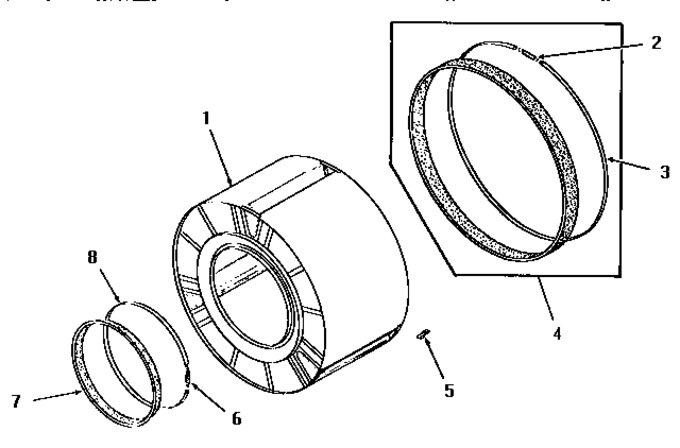

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53137		Assy,drum		Appelez-nous	-
2	52130		Adapter, Strain Relief		Appelez-nous	-
3	50781		Strap,seal		Appelez-nous	-
4	51883A		Assy,seal		Appelez-nous	-
5	51201		Clip		Appelez-nous	-
6	50168		Spring		Appelez-nous	-
7	51881		Seal,front		Appelez-nous	-
8	50169		Strap,retainer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
