01 - Cabinet Parts
02 - Liner Parts

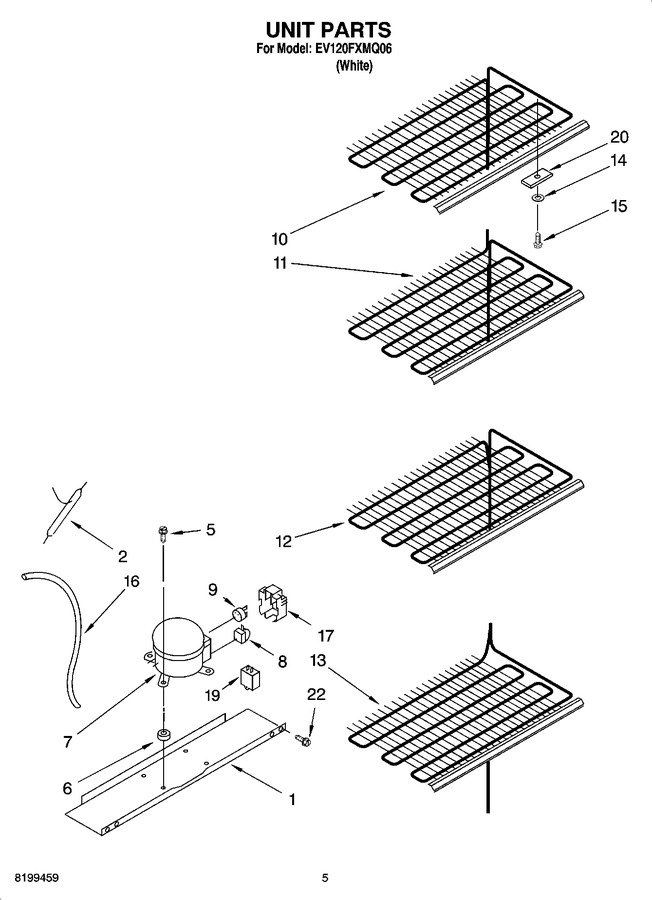

03 - Unit Parts
04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4357056 | Compressor Mounting Pan |
|
- | |||||
| 2 | 4001 | Drier (Replaces: 4357299) |
|
Immediately | $ 9.64 | ||||
| 5 | 8210220 | Compressor Mounting Screw |
|
- | |||||
| 6 | 4356335 | Compressor Grommet |
|
- | |||||
| 7 | W10309989 | Compressor (includes Items 2, 6, 8, 9, 17 And 18) (Replaces: 4390734) |
|
Immediately | $ 591.26 | ||||
| 8 | 4356738 | Relay |
|
$ 53.17 | |||||
| 9 | 2162216 | Overload (Replaces: 4356989) |
|
$ 136.14 | |||||
| 10 | 8210295 | Evaporator, Top |
|
- | |||||
| 11 | 8210296 | Evaporator Shelf |
|
- | |||||
| 12 | 8210297 | Evaporator Shelf |
|
- | |||||
| 13 | 8210298 | Evaporator Shelf |
|
- | |||||
| 14 | 4357057 | Washer |
|
- | |||||
| 15 | WP3-24004-109 | Evaporator, Mounting Screw (Replaces: 4357223) |
|
$ 7.25 | |||||
| 16 | 4390922 | Heat Exchanger |
|
- | |||||
| 17 | 4356777 | Cover |
|
- | |||||
| 19 | 8210273 | Capacitor |
|
$ 55.86 | |||||
| 20 | 4356854 | Clamp |
|
- | |||||
| 22 | WP3-24838-048 | Screw (Replaces: 4356820) |
|
$ 7.00 |
