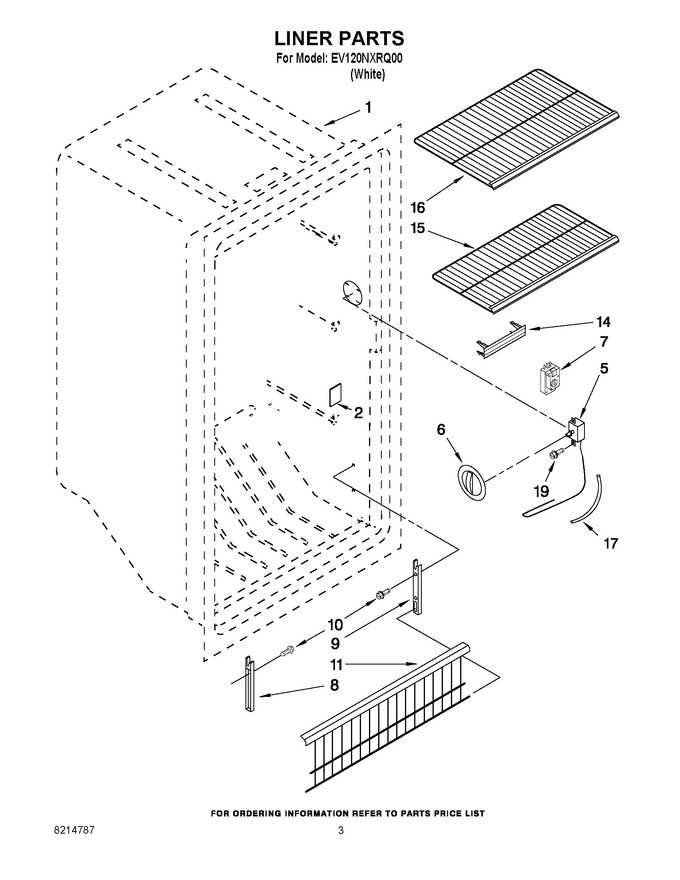

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	1-60123-001		Cover, Icemaker Hole   (Replaces: 4390649)				$ 68.65
5	WP4-83053-002		Thermostat   (Replaces: 8210344)				$ 220.05
6	3-82390-001		Knob, Thermostat   (Replaces: 8210348)				$ 25.80
7	WP3-81329		Timer, Defrost   (Replaces: 3-81329)			Immediately	$ 170.69
8	4357294		Support, Fence (l.h)		Appelez-nous	-
9	4357293		Support, Fence (r.h)				$ 48.96
10	4356891		Screw		Appelez-nous	-
11	4357179		Gate		Appelez-nous	-
14	WP3-80414-103		Vent   (Replaces: 4357295)				$ 11.57
15	8210337		Shelf, Middle (1)		Appelez-nous	-
16	8210336		Shelf, Top (2)		Appelez-nous	-
17	WP2196003		Tubing, Thermostat   (Replaces: 8210246)				$ 7.16
19	4390798		Screw		Appelez-nous	-
