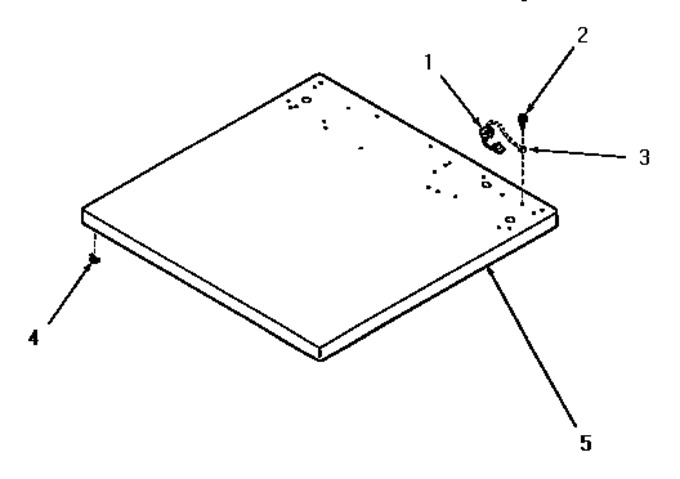

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	52151		Relief, Strain		Appelez-nous	-
2	51924		Screw,10-24 X 1/2 Hex		Appelez-nous	-
3	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
4	23007		Caged Nut		Appelez-nous	-
5	55903W		Cabinet Top, White		Appelez-nous	-
5	55903H		Cabinet Top, Harvest Gold		Appelez-nous	-
5	55903C		Cabinet Top, Coppertone		Appelez-nous	-
5	55903A		Cabinet Top, White		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
