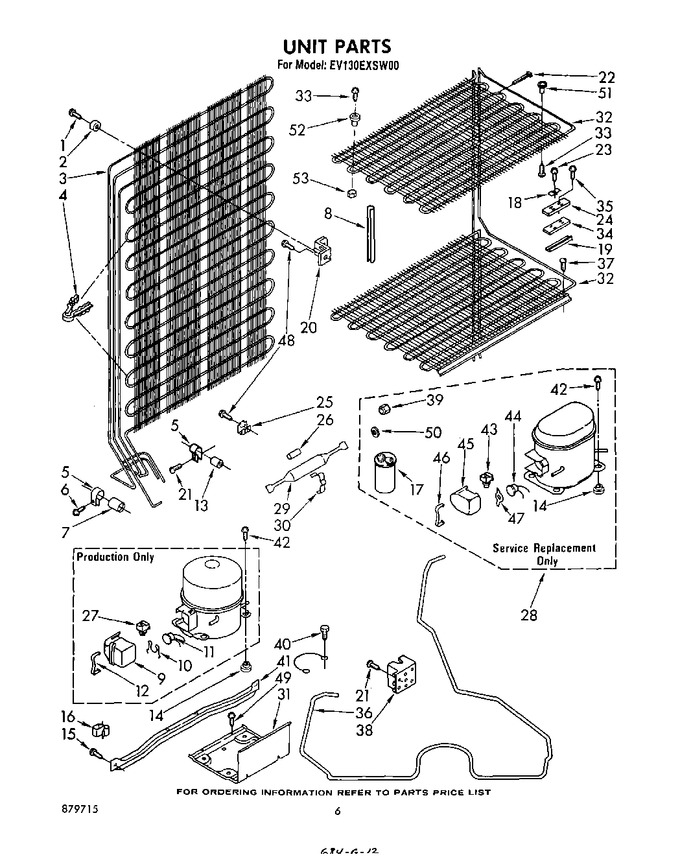

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	487888		Screw, 8 X 7/8 (2)		Appelez-nous	-
2	204349		Bumper (2)		Appelez-nous	-
3	945491		Condenser & Precooler Assembly		Appelez-nous	-
4	942739		Tube Clip (2)		Appelez-nous	-
5	510716		Tube Clamp		Appelez-nous	-
6	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 19.04
7	1108064		Dampener		Appelez-nous	-
8	941384		Cover, Connecting Lines ((1))		Appelez-nous	-
8	941447		Cover, Connecting Lines ((2))		Appelez-nous	-
9	943496		Cover, Terminal (used W/original Compressor)		Appelez-nous	-
10	943494		Overload Spring (used W/original Compressor)		Appelez-nous	-
11	945591		Overload (used W/original Compressor)		Appelez-nous	-
12	943497		Strap, Cover (used W/original Compressor)		Appelez-nous	-
13	945593		Dampener		Appelez-nous	-
14	876811		Grommet (4)   (Replaces: 1100826)				$ 6.68
15	489340		Screw, 5/16-18 X 5/8 (2)   (Replaces: 488683)		Appelez-nous	-
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
17	482996		Capacitor, Start		Appelez-nous	-
18	510614		Header Clamp Plate (2)		Appelez-nous	-
19	510754		Clip, Thermostat		Appelez-nous	-
20	510721		Condenser Bracket (2)		Appelez-nous	-
21	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
22	851095		Strap, Tube (3)		Appelez-nous	-
23	488054		Screw, 8-32 X 7/16 (3)		Appelez-nous	-
24	987316		Shim, Thermostat Plate		Appelez-nous	-
25	4386951		Clip, Condenser Mounting (2)   (Replaces: 942852)		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	945590		Relay (used W/original Compressor)		Appelez-nous	-
28	482981		Compressor		Appelez-nous	-
29	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 47.31
30	547637		Clamp		Appelez-nous	-
31	942860		Plate, Unit Mounting		Appelez-nous	-
32	1114234		Evaporator Shelves (shelf, 2nd)		Appelez-nous	-
32	1100889		Evaporator Shelves (shelf, 3rd)		Appelez-nous	-
32	1100893		Evaporator Shelves (shelf, Bottom)		Appelez-nous	-
32	1114224		Evaporator Shelves (shelf, Top)		Appelez-nous	-
33	WP488163		Screw, 8 X 1   (Replaces: 488163)				$ 6.79
34	851289		Plate, Thermostat		Appelez-nous	-
35	488436		Screw, 8-32 X 5/8 (2)		Appelez-nous	-
36	943334		Heat Exchanger		Appelez-nous	-
37	WP308685		Screw, 10-16 X 1/2 (6)   (Replaces: 487942)			Immediately	$ 7.08
38	937068		Box, Junction		Appelez-nous	-
39	489142		Nut		Appelez-nous	-
40	303776		Screw, 8-32 X .312 (grounding)   (Replaces: 488879)		Appelez-nous	-
41	945448		Rail, Unit Mounting		Appelez-nous	-
42	876811		Screw, 1/4-28 X 1   (Replaces: 489116)				$ 6.68
43	WP2262181		Relay (use W/service Compressor)   (Replaces: 1108143)				$ 110.39
44	483037		Overload (used W/service Compressor)		Appelez-nous	-
45	1108115		Cover (used W/service Compressor)		Appelez-nous	-
46	938384		Strap, Cover (used W/service Compressor)		Appelez-nous	-
47	1114190		Spring, Overload (used W/service Compressor)		Appelez-nous	-
48	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.07
49	WP965173		Screw   (Replaces: 487248)			Immediately	$ 9.65
50	489143		Washer		Appelez-nous	-
51	941842		Spacer (3)		Appelez-nous	-
52	1103816		Spacer (2)				$ 0.12
53	482278		Start Kit		Appelez-nous	-
53	978026		Valve, Access (5/16``)			Immediately	$ 115.28
53	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
53	978028		Valve, Access (1/2)		Appelez-nous	-
53	978029		Valve Access (5/8``)				$ 93.85
53	978030		Valve, Access (3/4``)				$ 117.64
53	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
53	488748		Nut (2)		Appelez-nous	-
