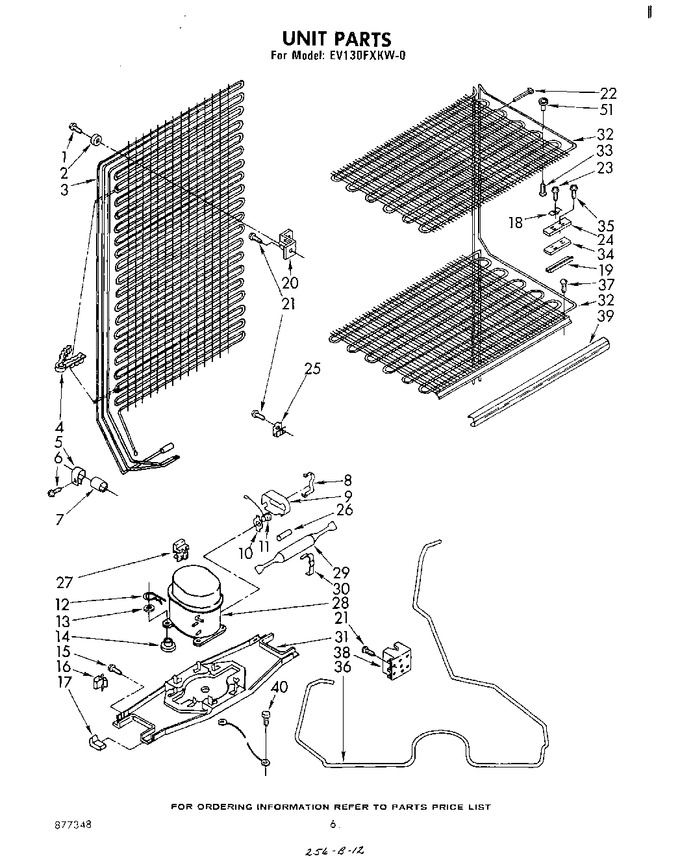

04 - Unit


05 - Shelf


06 - Liner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	487888		Screw, 8 X 7/8 (2)		Appelez-nous	-
2	204349		Bumper (2)		Appelez-nous	-
3	942713		Condenser & Precooler Assembly		Appelez-nous	-
4	938232		Clip, Tube (2)		Appelez-nous	-
5	510716		Tube Clamp		Appelez-nous	-
6	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 19.04
7	510769		Dampener		Appelez-nous	-
8	549342		Strap		Appelez-nous	-
9	549336		Terminal Cover		Appelez-nous	-
10	549086		Overload Spring		Appelez-nous	-
11	941587		Overload		Appelez-nous	-
12	596712		Clip (4)		Appelez-nous	-
13	992950		Slotted Washer (4)		Appelez-nous	-
14	646499		Grommet (4)		Appelez-nous	-
15	489340		Screw, 5/16-18 X 5/8 (2)   (Replaces: 488683)		Appelez-nous	-
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
17	937000		Support Grommet (2)		Appelez-nous	-
18	510614		Header Clamp Plate (2)		Appelez-nous	-
19	510754		Clip, Thermostat		Appelez-nous	-
20	510721		Condenser Bracket (2)		Appelez-nous	-
21	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
22	851095		Strap, Tube (3)		Appelez-nous	-
23	488054		Screw, 8-32 X 7/16 (3)		Appelez-nous	-
24	851290		Shim, Thermostat Plate		Appelez-nous	-
25	935788		Clip, Condenser Mounting (2)		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	989646		Relay		Appelez-nous	-
27	989647		Relay (alternate)		Appelez-nous	-
28	482055		Compressor (also Order 482331 Installation Kit)		Appelez-nous	-
29	W10843121		Drier   (Replaces: 978246)			Immediately	$ 47.31
30	547637		Clamp		Appelez-nous	-
31	935779		Unit, Frame		Appelez-nous	-
32	941834		Evaporator Shelves (shelf, 2nd)		Appelez-nous	-
32	941826		Evaporator Shelves (shelf, 3rd)		Appelez-nous	-
32	941829		Evaporator Shelves (shelf, Bottom)		Appelez-nous	-
32	941823		Evaporator Shelves (shelf, Top)		Appelez-nous	-
33	WP488163		Screw, 8 X 1   (Replaces: 488163)				$ 6.79
34	851289		Plate, Thermostat		Appelez-nous	-
35	488436		Screw, 8-32 X 5/8 (2)		Appelez-nous	-
36	940195		Heat Exchanger		Appelez-nous	-
37	WP308685		Screw, 10-16 X 1/2 (6)   (Replaces: 487942)			Immediately	$ 7.08
38	937068		Box, Junction		Appelez-nous	-
39	941795		Trim, Shelf Front		Appelez-nous	-
40	303776		Screw, 8-32 X .312 (grounding)   (Replaces: 488879)		Appelez-nous	-
51	482278		Start Kit		Appelez-nous	-
51	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 19.48
51	978028		Valve, Access (1/2)		Appelez-nous	-
51	978029		Valve Access (5/8``)				$ 93.85
51	978030		Valve, Access (3/4``)				$ 117.64
51	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 94.73
51	941842		Spacer (3)		Appelez-nous	-
51	978026		Valve, Access (5/16``)			Immediately	$ 115.28
