SELECT A DIAGRAM

02 - Door, Lit/optional


03 - Cabinet


04 - Unit


05 - Shelf


06 - Liner

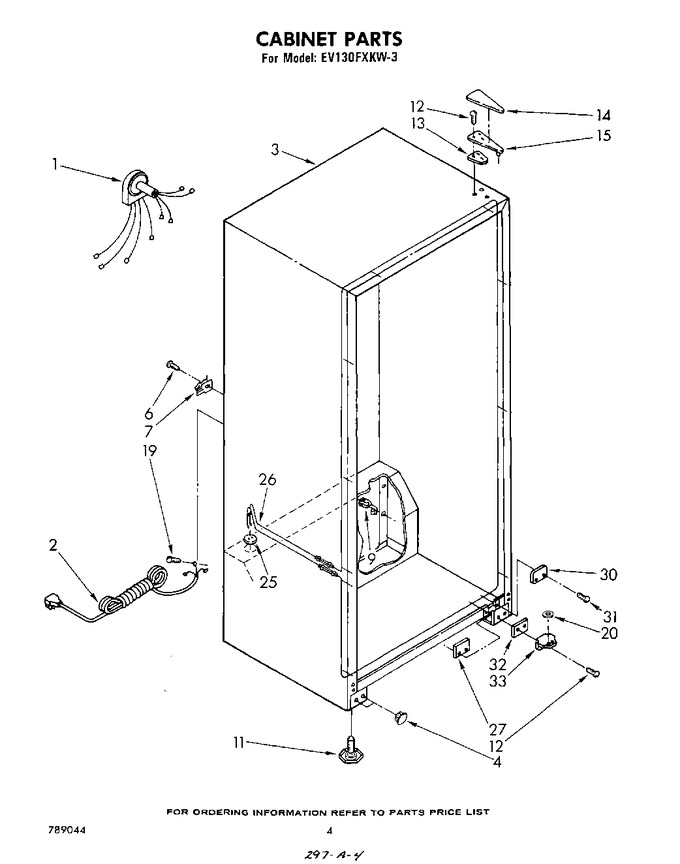

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	941518		Cabinet Wiring Assembly		Appelez-nous	-
2	850626		Cord, Service		Appelez-nous	-
3	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
4	941416		Hole Plug (white)		Appelez-nous	-
6	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 12.62
7	939009		Clamp		Appelez-nous	-
9	544108		Bushing, Strain Relief		Appelez-nous	-
11	W11117769		Leveler (4)   (Replaces: 939005)			Immediately	$ 16.61
12	WP999367		Screw, 10-32 X 23/32   (Replaces: 489105)				$ 7.07
12	488949		Screw (repair)		Appelez-nous	-
13	836192		Shim		Appelez-nous	-
13	836151		Shim, Top Hinge		Appelez-nous	-
14	842010		Hinge Cover (white)		Appelez-nous	-
15	842038		Hinge & Shim (top)		Appelez-nous	-
19	488474		Screw, 8-32 X 3/8		Appelez-nous	-
20	WP487802		Repair, 7/32   (Replaces: 488184)			Immediately	$ 7.12
20	587576		Repair, 1/16		Appelez-nous	-
20	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.12
25	946650		Grommet, Wiring		Appelez-nous	-
26	938335		Heater, Stile		Appelez-nous	-
27	935743		Tap Plate		Appelez-nous	-
30	935707		Rail Cover, Tube Entry (white)		Appelez-nous	-
31	488895		Screw		Appelez-nous	-
32	935737		Shim, Bottom Hinge		Appelez-nous	-
33	943668		Butt, Hinge (bottom R.h.)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
