Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 0058682 Knob, Inf Switch, Black Appelez-nous -
2 0058597 Control Panel, Glass Appelez-nous -
3 0057499 Switch Mounting Bracket Appelez-nous -
4 Y0041825 Screw, No.8-32 X 3/8 Hex Wsh Hd Appelez-nous -
5 WP3400882 Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768) In-Stock Immediately $ 6.47

6 Y0041991 Switch Gasket Xet-490 Appelez-nous -
7 Y0051726 Infinite Switch Appelez-nous -
8 Y0042183 Indicator Light Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

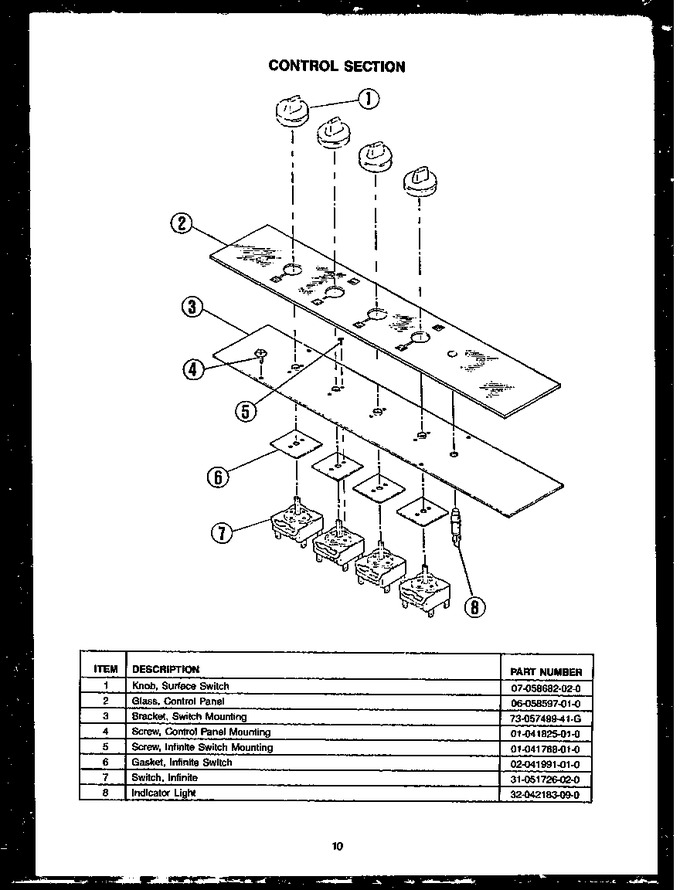

Diagram for FET265
