SELECT A DIAGRAM

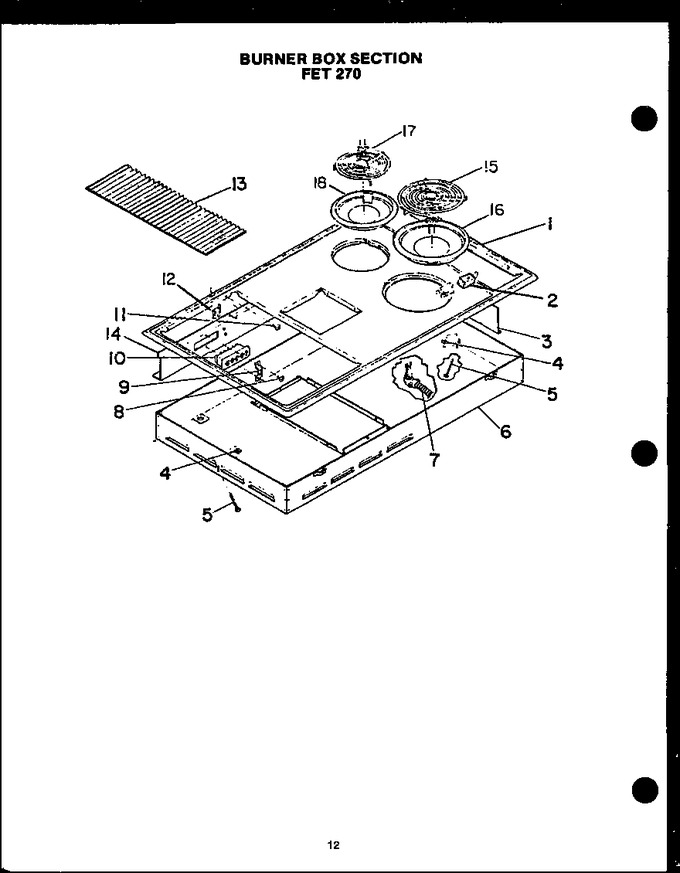

01 - Burner Box Section


02 - Control Section


03 - Cooktop Module


04 - Glass Ceramic Module


05 - Page 1


06 - Solid Element Module


07 - Ventilation Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300981B		Main Top, Black Enamel		Appelez-nous	-
1	0300186		Main Top, Chrome		Appelez-nous	-
1	300981W		Main Top, White Enamel		Appelez-nous	-
2	330031		Kit, Top Element Term Block   (Replaces: Y0089336)			Immediately	$ 14.48
2	Y0041785		Screw, No.6-32 X .250 Pan Hd Ph		Appelez-nous	-
2	Y0042154		Sub 302765, Mounting Clip		Appelez-nous	-
3	Y0040821		Switch Shield Et-590 595		Appelez-nous	-
4	0041861		Nut 1/4-20 Sq. Et590 595		Appelez-nous	-
5	Y0041836		Screw 1/4-20-4`` 590 595		Appelez-nous	-
6	0040474		Burner Box W/a W/vent Ket595		Appelez-nous	-
7	Y0043748		5651118 C		Appelez-nous	-
8	Y0041785		Screw, No.6-32 X .250 Pan Hd Ph		Appelez-nous	-
9	Y0040965		Plug Block Mtg Brkt Et590 595		Appelez-nous	-
10	Y0042210		Plug Block Modular Top		Appelez-nous	-
10	Y0042123		Element, Contact-module Top		Appelez-nous	-
11	0041896		Tinnerman Clip Pyro Th		Appelez-nous	-
11	Y0041810		Screw		Appelez-nous	-
12	Y0054254		Switch, Fan		Appelez-nous	-
12	Y0071911		Screw		Appelez-nous	-
12	0041902		Speed Nut (twin Type)		Appelez-nous	-
13	301110T		Vent Cover, Lt. Gray		Appelez-nous	-
13	0058941		Vent Cover, Cooktop		Appelez-nous	-
14	Y0040851		Plug Block Baffle Ket570		Appelez-nous	-
15	WP3191454		Element, 5 Turn (2100w) 8``   (Replaces: Y0051572)				$ 163.63
16	WPW10290350		Bowl, Large Burner (blk)   (Replaces: 305839B)			Immediately	$ 15.25
16	X042144		Pkg. 160, B.b. 8``		Appelez-nous	-
16	W10291024		Burner, Bowl 8`` (lt Gry)   (Replaces: 301168T)			Immediately	$ 49.90
17	WP3191455		Surface Element, 6`` 240 V. 125   (Replaces: Y0051575)				$ 133.85
18	Y059011B		Bowl, Small Burner (blk)		Appelez-nous	-
18	X042143		Pkg. 160, B.b. 6``		Appelez-nous	-
18	W10291024		Burner Bowl 6`` (lt Gry)   (Replaces: 301167T)			Immediately	$ 49.90
NI	Y0041997		Insulation Board		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
